Home >> Kia >> 2021 >> Forte EX >> Repair and Diagnosis >> Drivelines & Axles >> Axle Shafts >> Driveshaft Assembly >> Front Driveshaft >> Components & Components Location >> Components Location

Components Location

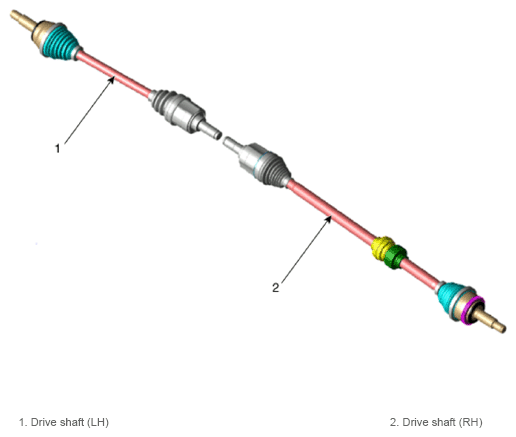

G13304309

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

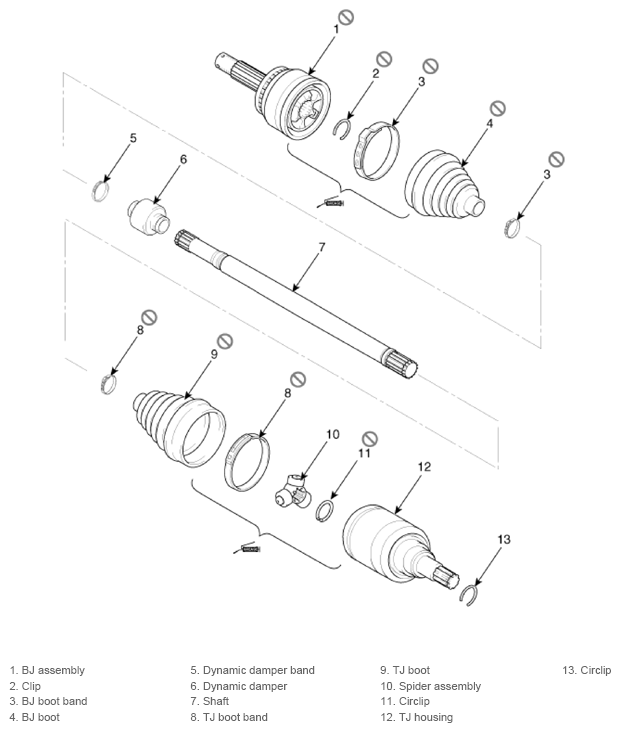

G13304310

Courtesy of KIA MOTORS AMERICA, INC.

[LH]

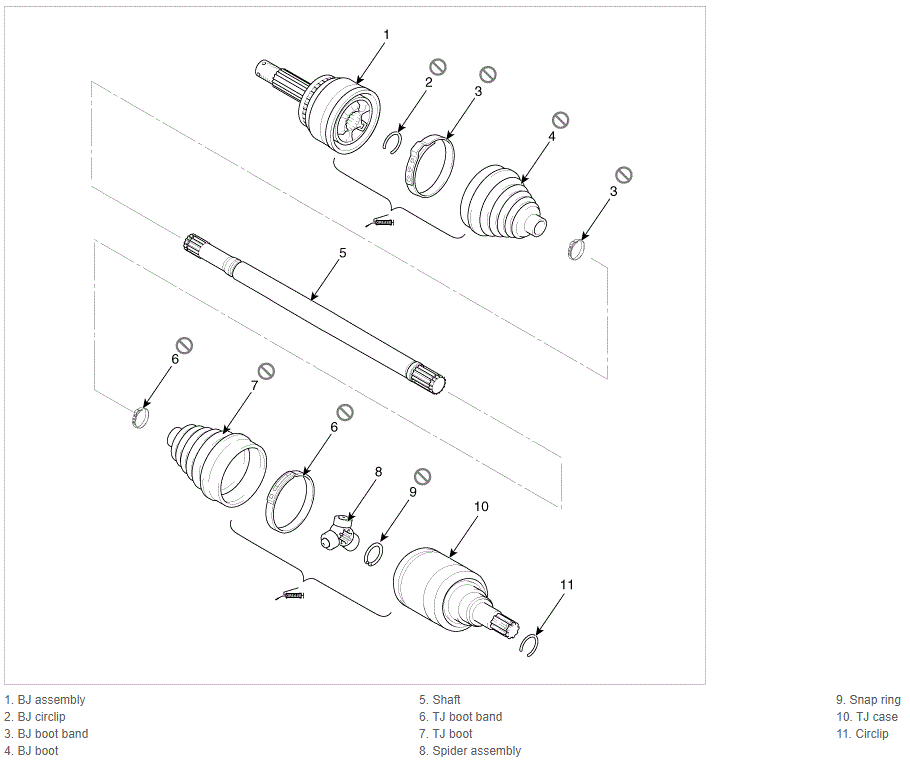

G13304311

Courtesy of KIA MOTORS AMERICA, INC.
