Terminal Function

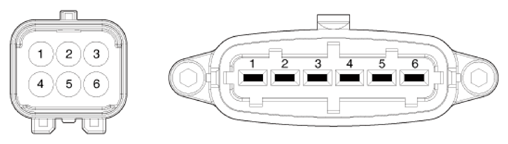

G13304876Courtesy of KIA MOTORS AMERICA, INC.
PIN No Function Wire color
1 Ground BLACK
2 CAN High WHITE
3 CAN Low YELLOW
4 Vacuum sensor PINK
5 IGN 1 BLUE
6 Battery (+) BLUE
