Repair Procedures: Replacement

  1. Switch "OFF" ignition and disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body (Interior and Exterior) - "CRASH PAD LOWER PANEL ")

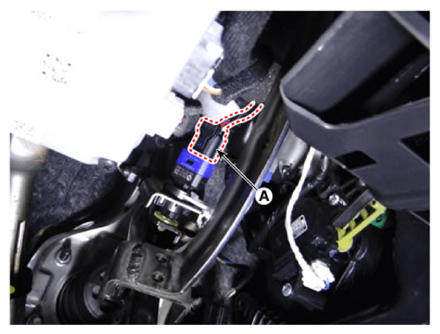

  3. Disconnect the stop lamp switch connector (A).
    G13304969Courtesy of KIA MOTORS AMERICA, INC.

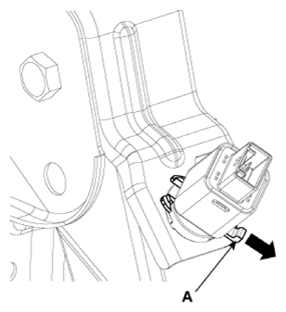

  4. Pull the locking plate (A) as indicated by the arrow.
    G13304970Courtesy of KIA MOTORS AMERICA, INC.

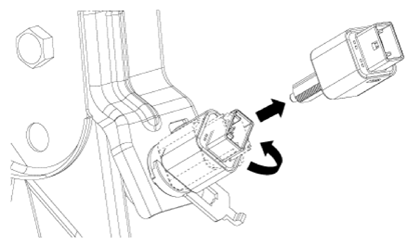

  5. Turn brake switch 45° counterclockwise and remove it.
    G13304971Courtesy of KIA MOTORS AMERICA, INC.
  6. Inspect a removed stop lamp switch along the below procedures.

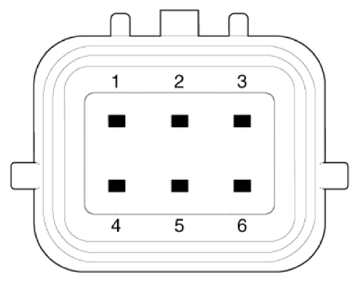

    1. Confirm a normal connection with terminal part.
      • A confirmation can be made to see if the connector has been secured properly and if a connection mark is present.
    G13304972Courtesy of KIA MOTORS AMERICA, INC.

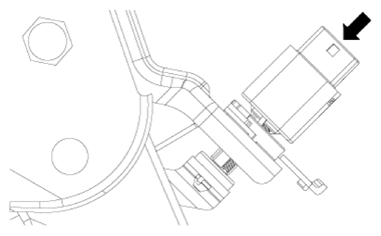

  7. Fix the brake pedal arm and insert fully the brake switch so that the contact part is invisible.
    G13304973Courtesy of KIA MOTORS AMERICA, INC.

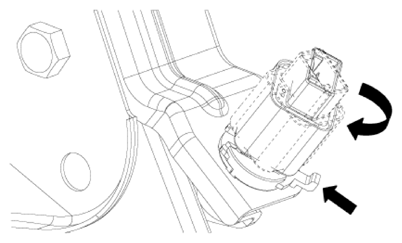

  8. After inserting, turn the brake switch 45° clockwise, and then assemble locking plate by pushing.
    G13304974Courtesy of KIA MOTORS AMERICA, INC.

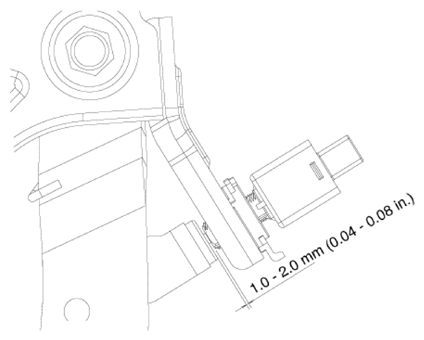

  9. Confirm the gap between stop lamp switch and bracket.

    Stop lamp clearance (A):

    1.0 - 2.0 mm (0.04 - 0.08 in.)

    G13304975Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • If the gap between stop lamp switch and bracket is not between 1.0 - 2.0 mm (0.04 - 0.08 in), check the mounting clip and other parts around the stop lamp.
    • If everything is normal, reinstall the stop lamp switch and check the clearance again.
  10. Connect the stop lamp switch connector (A).
    G13304976Courtesy of KIA MOTORS AMERICA, INC.
  11. Install the other parts in the reverse order of removal.
