Front Brake Pads

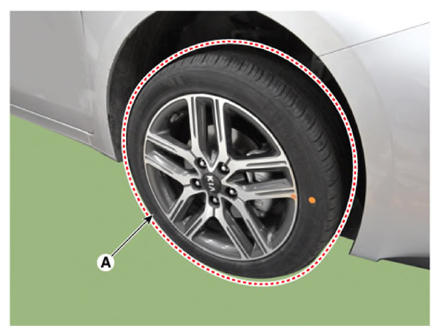

Remove the front wheel and tire (A).
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage the hub bolts when removing the front wheel and tire.

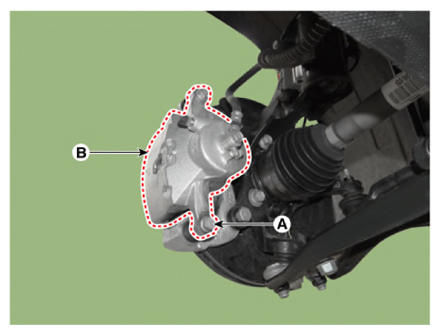

Loosen the guide rod bolt (A) and then pivot the caliper body (B) up out of the way.
Tightening torque:

21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

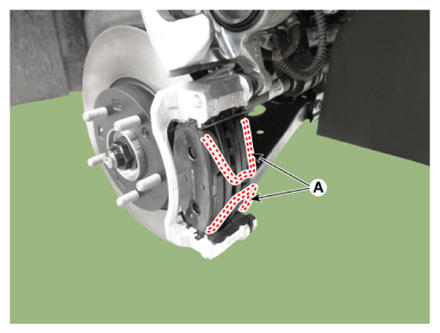

Remove the pad return springs (A).

Courtesy of KIA MOTORS AMERICA, INC.

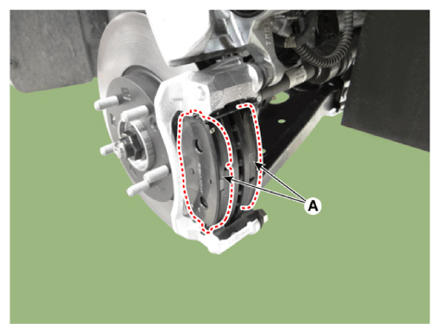

Remove the brake pads (A).

Courtesy of KIA MOTORS AMERICA, INC.

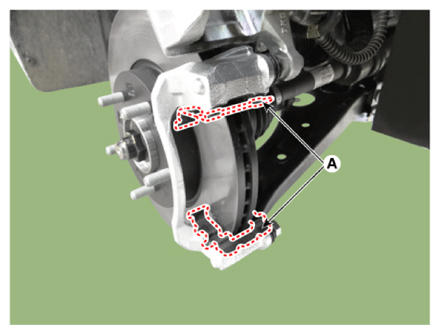

Remove the pad liner (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Place the return spring, pad liner, inner brake shim, and brake pad all at the same time when replacing the brake pad.
