Removal And Installation: Front

Disconnect the battery negative terminal.

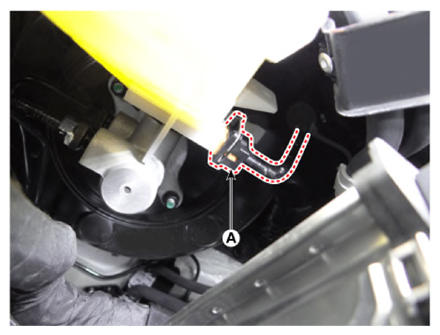

Disconnect the brake fluid level sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the brake fluid from the master cylinder reservoir with a syringe.
NOTE: Do not spill brake fluid on the vehicle as it may damage the paint. If brake fluid comes in contact with the paint, wash off immediately with water.

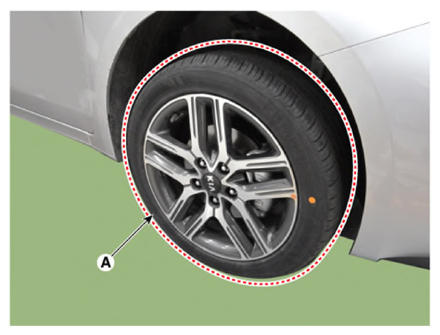

Remove the front wheel and tire (A).
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage the hub bolts when removing the front wheel and tire.

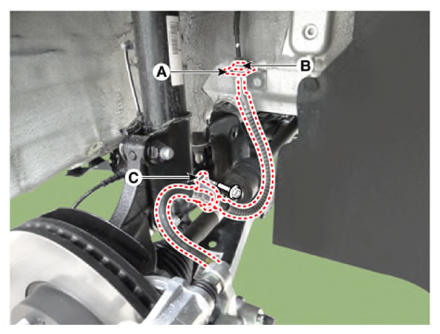

Remove the brake hose clips (A).
Disconnect the brake hoses by loosening the flare nuts (B).
Tightening torque:

12.7 - 16.7 N.m (1.3 - 1.7 kgf.m, 9.4 - 12.3 lb.ft)
Disconnect the brake hose bracket (C) by loosening the bolt.
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

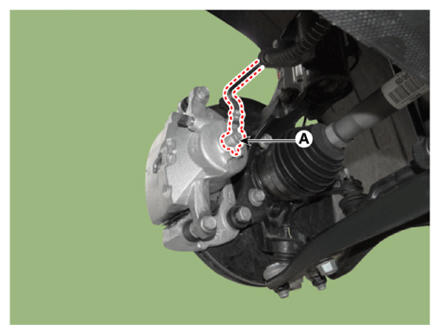

Remove the brake hose (A) from the brake caliper by loosening the bolt.
Tightening torque:

24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

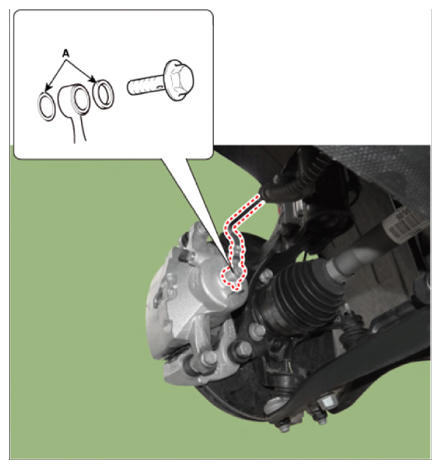

NOTE: Use a new washers (A) whenever installing.

Courtesy of KIA MOTORS AMERICA, INC.
After installation, bleed the brake system.
(Refer to Brake system - "BRAKE BLEEDING PROCEDURES ")
Check the spilled brake oil.
