Repair Procedures: Inspection

  1. Remove the front seat back.

    (Refer to Body - "FRONT SEAT BACK COVER ")

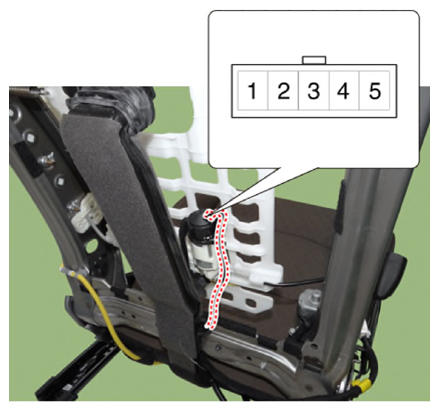

  2. When the battery power is supplied to the motor connector, check the motor for smooth operation.
    G13306224Courtesy of KIA MOTORS AMERICA, INC.
    G13306225Courtesy of KIA MOTORS AMERICA, INC.
