Repair Procedures: Removal

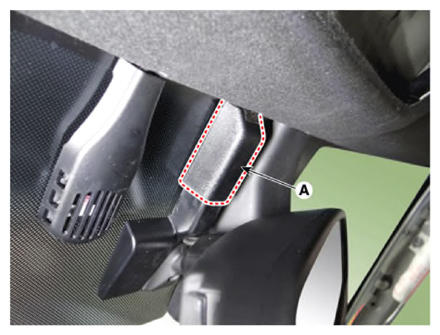

  1. Remove the mirror wiring cover (A).
    NOTE: Be careful not to damage the mirror wiring cover.
    G13305867Courtesy of KIA MOTORS AMERICA, INC.

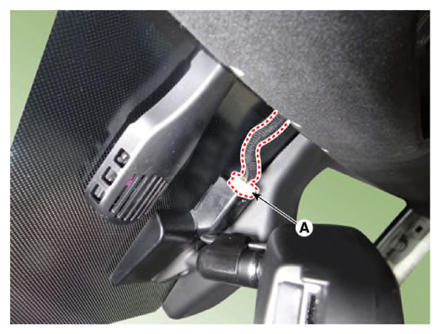

  2. Disconnect the connector (A) from mirror.
    G13305868Courtesy of KIA MOTORS AMERICA, INC.

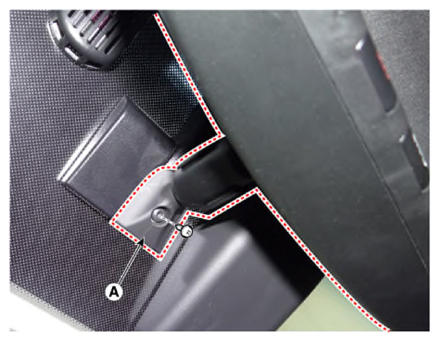

  3. Remove the rear view inside mirror (A) after loosening the screw.
    G13305869Courtesy of KIA MOTORS AMERICA, INC.
