Home >> Kia >> 2021 >> Forte EX >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Trunk Lid >> Trunk Lid Weatherstrip >> Repair Procedures >> Replacement

Repair Procedures: Replacement

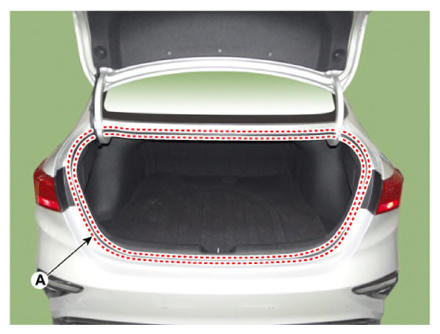

  1. Remove the trunk lid weatherstrip (A).
    NOTE: Do not apply sealant to the body.
    G13305156Courtesy of KIA MOTORS AMERICA, INC.
  2. To install, reverse the removal procedure.

    Information

    When installing the trunk lid weatherstrip, check the center - marking line (B).
