Interior Antenna 2

  1. Disconnect the negative battery terminal.
  2. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

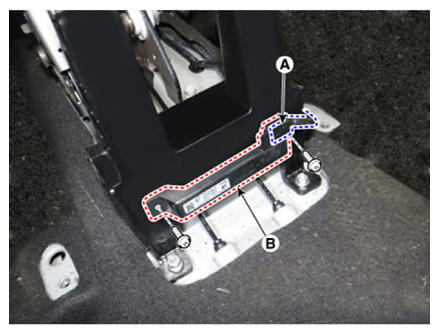

  3. Remove the Interior antenna 2 (B) by loosening the screws after disconnecting the connector (A).
    G13306305Courtesy of KIA MOTORS AMERICA, INC.
