Interior Antenna 1

NOTE: Take care not to bend or scratch the trim and panels.
  1. Disconnect the negative battery terminal.
  2. Remove the crash pad center lower panel.

    (Refer to Body - "CRASH PAD CENTER LOWER PANEL ")

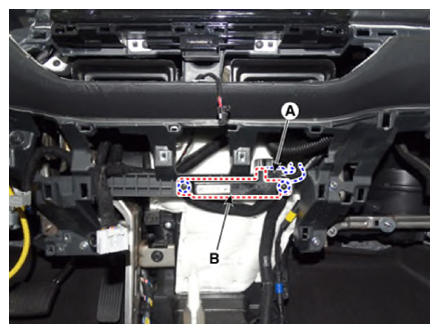

  3. Remove the Interior antenna 1 (B) by loosening the screws after disconnecting the connector (A).
    G13306304Courtesy of KIA MOTORS AMERICA, INC.
