Repair Procedures: Inspection
- Remove the overhead console lamp.
(Refer to Lighting System - "OVERHEAD CONSOLE LAMP ")

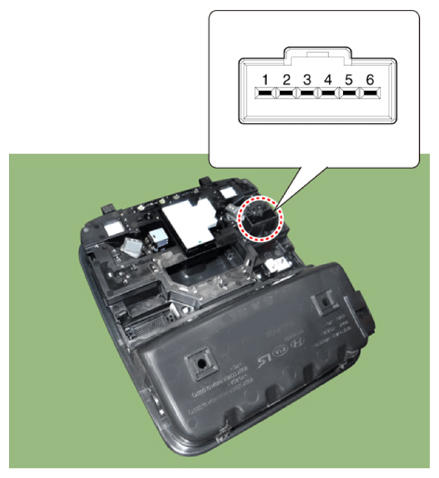

- Check for continuity between terminals.
| Pin | Function |
|---|---|
| 1 | Battery (+) |
| 2 | Door (-) |
| 3 | Room signal |
| 4 | - |
| 5 | - |
| 6 | Ground |
(Refer to Lighting System - "OVERHEAD CONSOLE LAMP ")
| Pin | Function |
|---|---|
| 1 | Battery (+) |
| 2 | Door (-) |
| 3 | Room signal |
| 4 | - |
| 5 | - |
| 6 | Ground |
