Repair Procedures: Removal

NOTE: When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  1. Disconnect the negative (-) battery terminal.

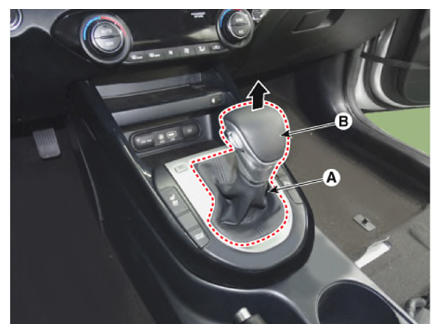

  2. Remove the knob (B) by pulling them in the direction of the arrow after separating the boots (A) from the console upper cover.
    G13305776Courtesy of KIA MOTORS AMERICA, INC.

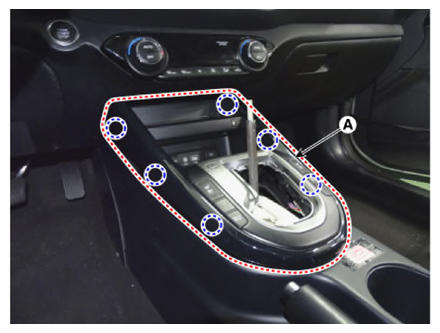

  3. Remove console upper cover (A).
    G13305777Courtesy of KIA MOTORS AMERICA, INC.

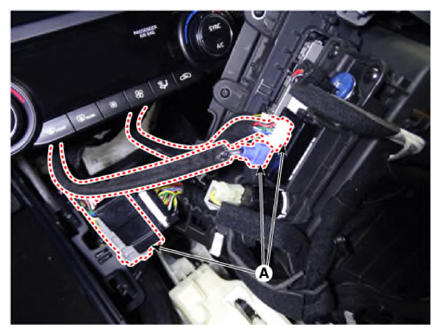

  4. Disconnect the connector (A) from console upper cover.
    G13305778Courtesy of KIA MOTORS AMERICA, INC.

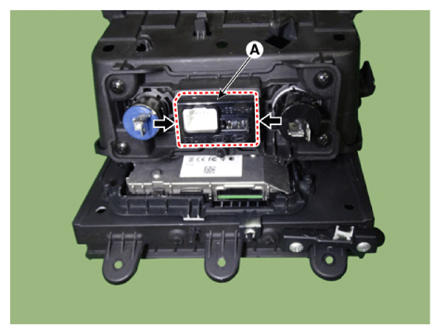

  5. Remove the multimedia jack (A) after releasing the fixed hooks.
    G13305779Courtesy of KIA MOTORS AMERICA, INC.
