Removal and Installation

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

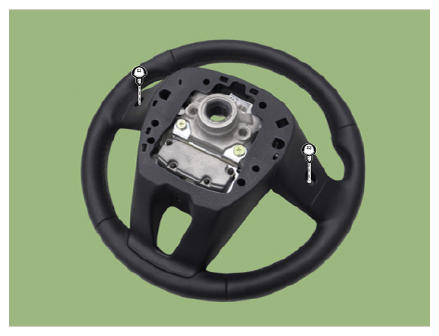

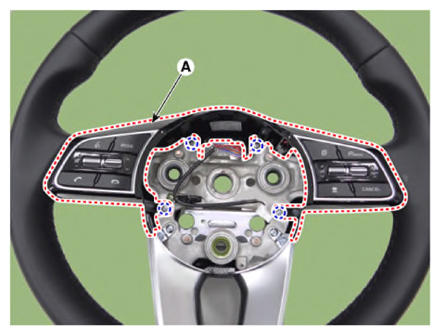

  3. Remove the steering wheel bezel assembly (A) after loosening the mounting screws.
    G13303712Courtesy of KIA MOTORS AMERICA, INC.
    G13303713Courtesy of KIA MOTORS AMERICA, INC.

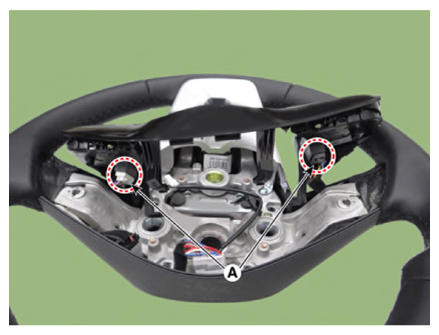

  4. Disconnect the connector (A) from steering wheel remote control.
    G13303714Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the steering wheel remote control (A) from bezel after loosening the screws.
    G13303715Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
