Connector And Terminal Function

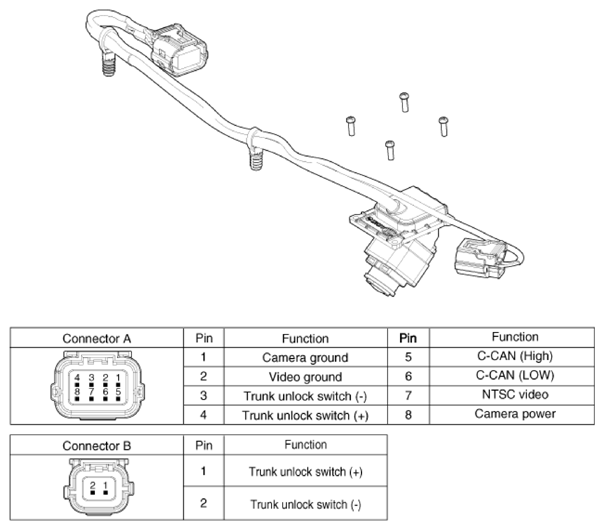

Fig 1: Rear View Monitor Connector End View And Terminal Description

G13306180

Courtesy of KIA MOTORS AMERICA, INC.
