Variant Coding

  1. Switch "OFF" the ignition.
  2. Connect the KDS to Data Link Connector (DLC).
  3. Switch "ON" the ignition.
  4. Select "Vehicle, Model year, Engine, System".
  5. Select "Vehicle S/W Management".
  6. Perform variant coding.

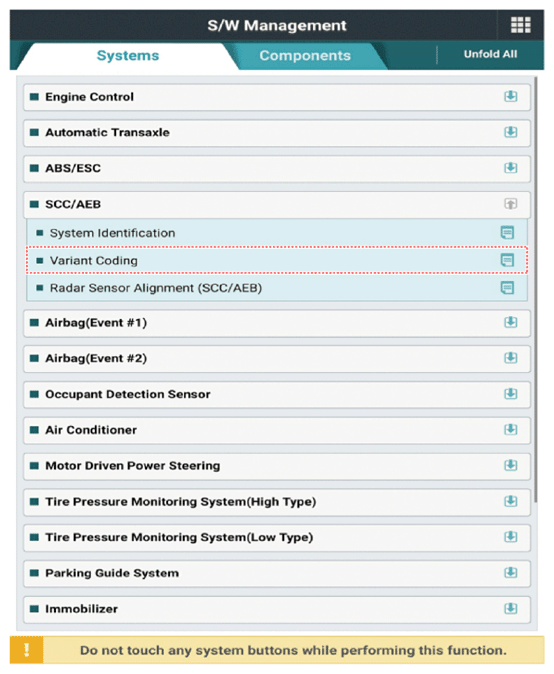

    G13303693Courtesy of KIA MOTORS AMERICA, INC.

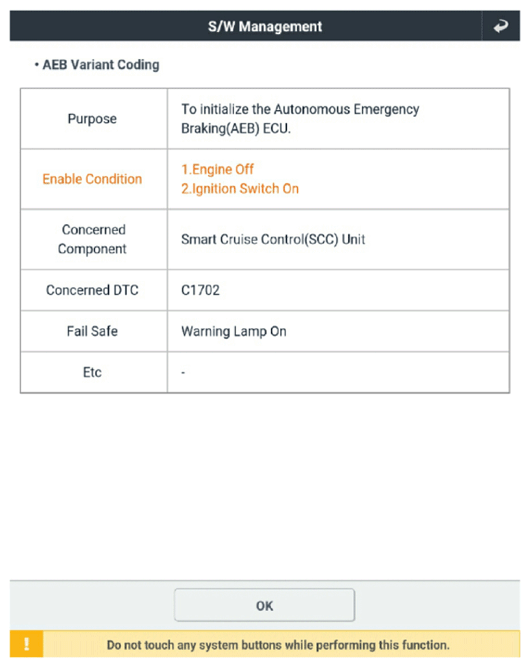

    G13303694Courtesy of KIA MOTORS AMERICA, INC.

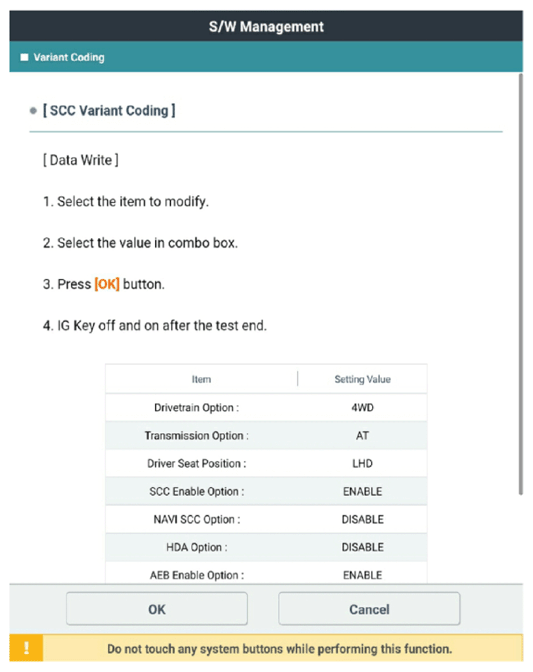

    G13303695Courtesy of KIA MOTORS AMERICA, INC.
