Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 8

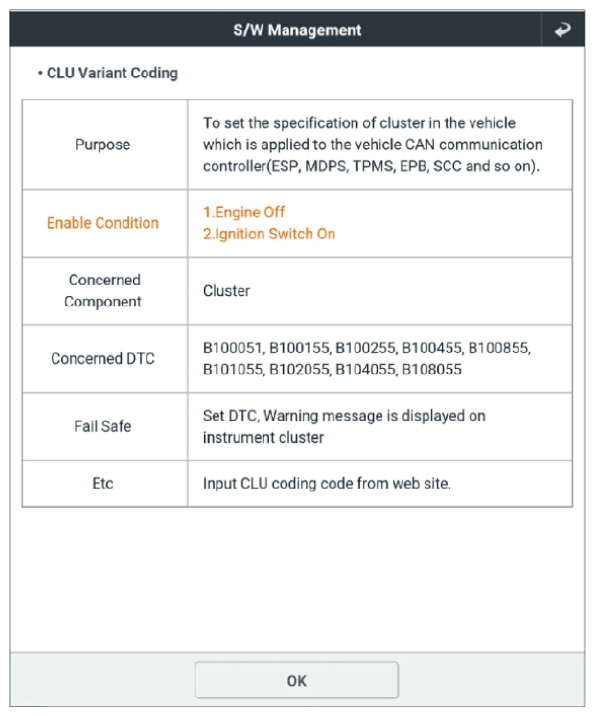

G13301869Courtesy of KIA MOTORS AMERICA, INC.

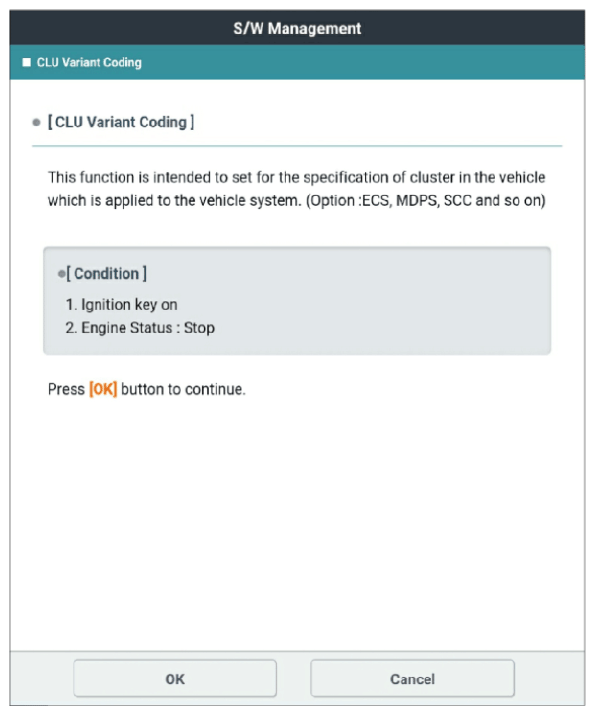

G13301870Courtesy of KIA MOTORS AMERICA, INC.

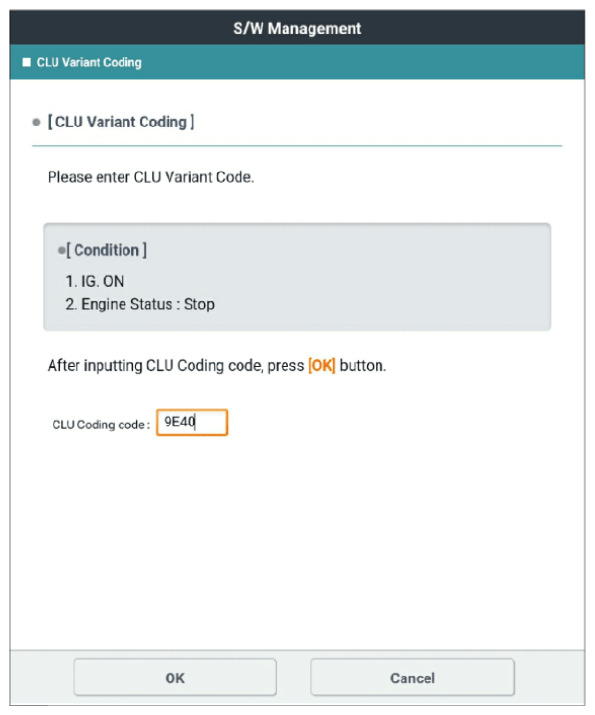

G13301871Courtesy of KIA MOTORS AMERICA, INC.

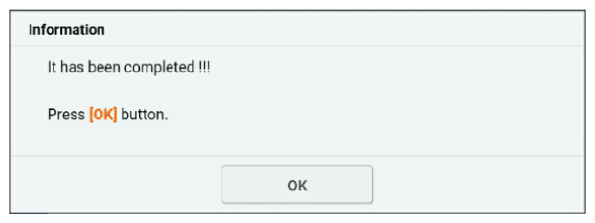

G13301872Courtesy of KIA MOTORS AMERICA, INC.

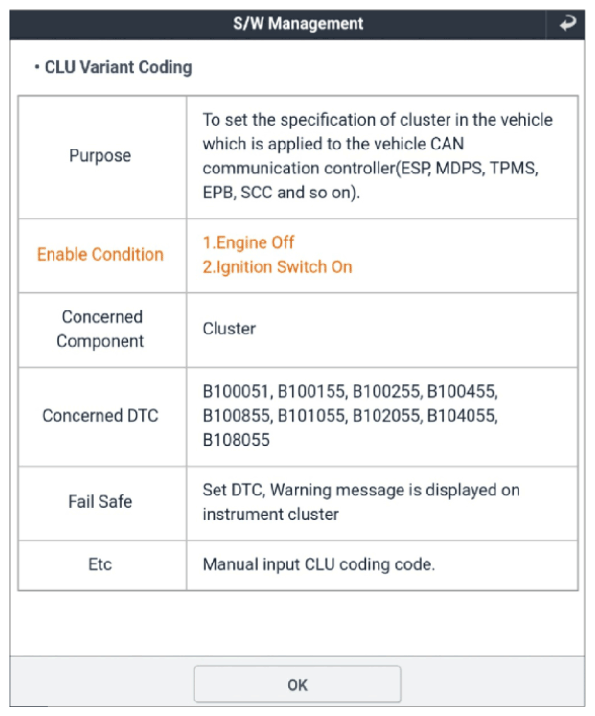

G13301873Courtesy of KIA MOTORS AMERICA, INC.

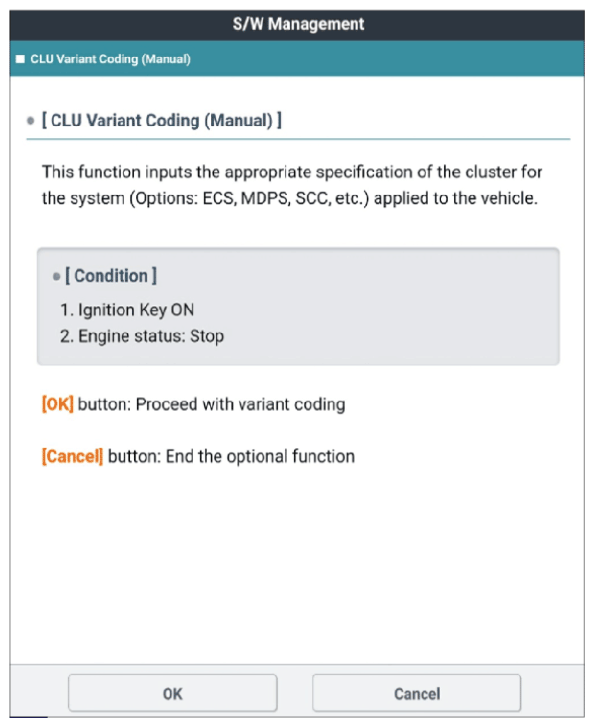

G13301874Courtesy of KIA MOTORS AMERICA, INC.

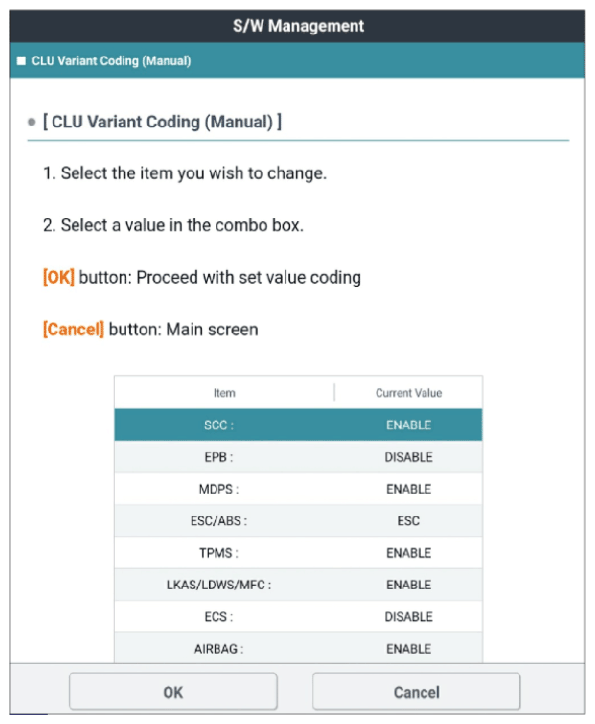

G13301875Courtesy of KIA MOTORS AMERICA, INC.

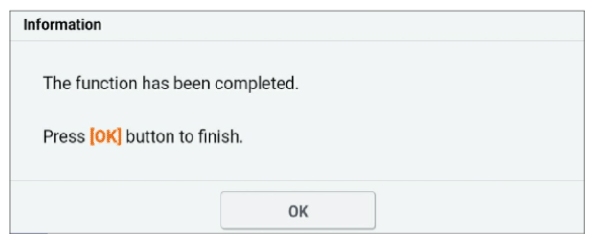

G13301876Courtesy of KIA MOTORS AMERICA, INC.
