Vehicle S/W Management

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig. 1 to 8

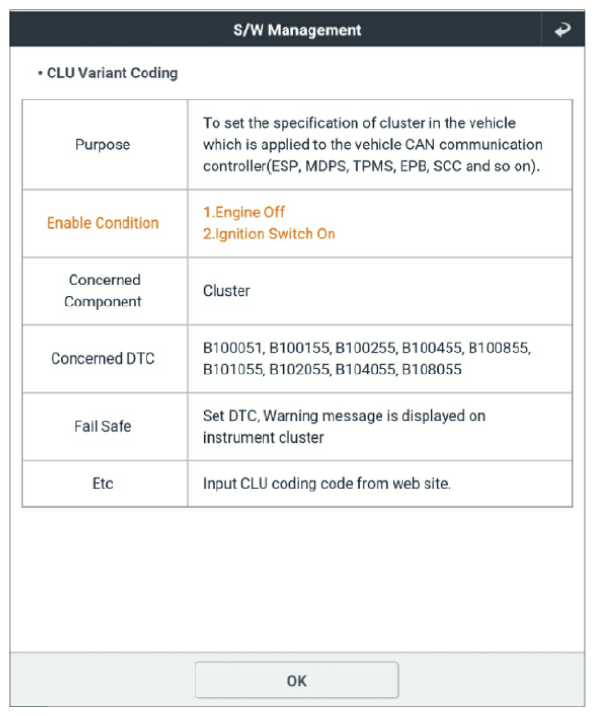

G13301849Courtesy of KIA MOTORS AMERICA, INC.

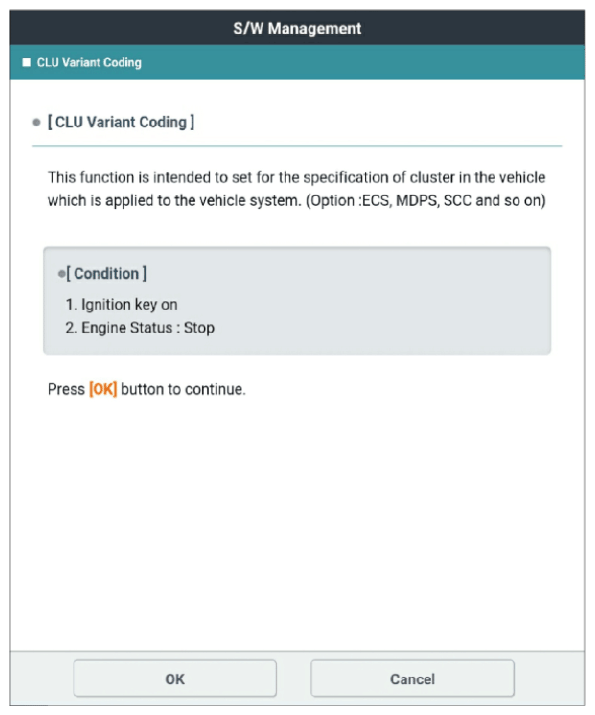

G13301850Courtesy of KIA MOTORS AMERICA, INC.

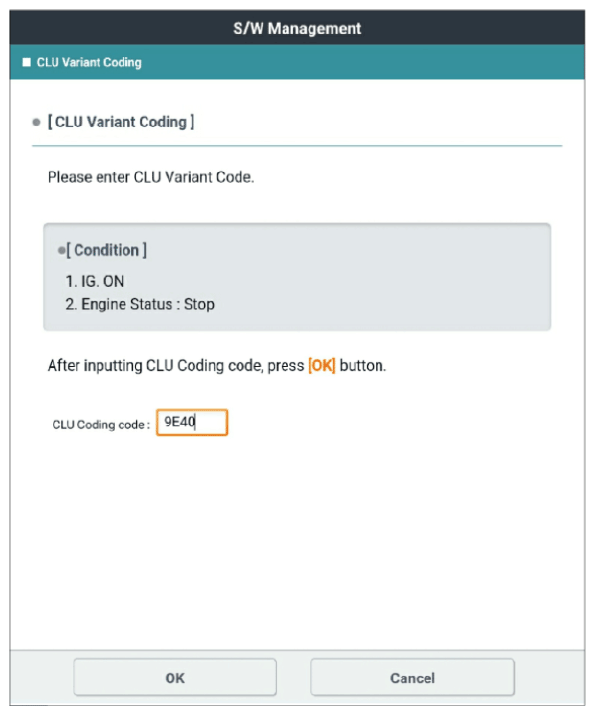

G13301851Courtesy of KIA MOTORS AMERICA, INC.

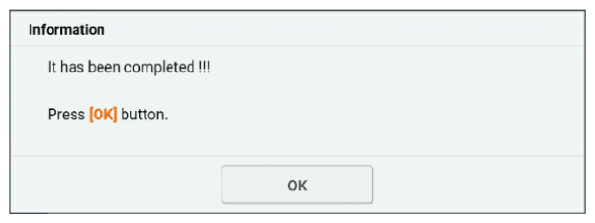

G13301852Courtesy of KIA MOTORS AMERICA, INC.

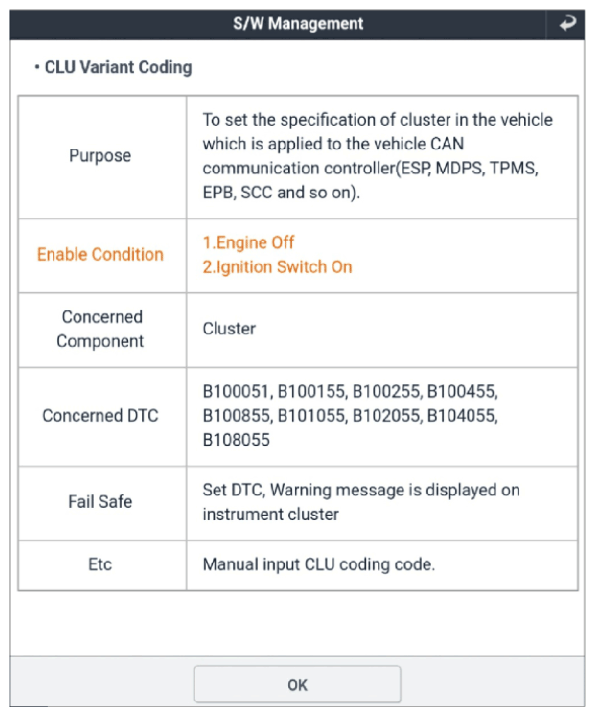

G13301853Courtesy of KIA MOTORS AMERICA, INC.

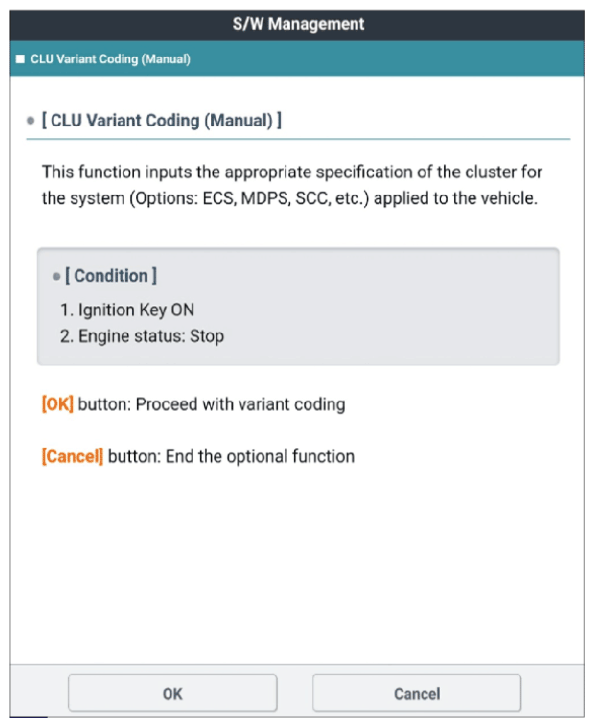

G13301854Courtesy of KIA MOTORS AMERICA, INC.

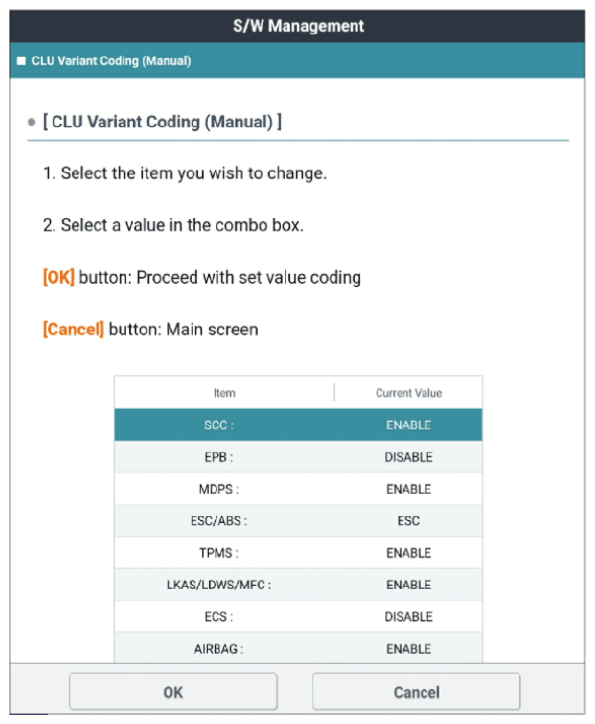

G13301855Courtesy of KIA MOTORS AMERICA, INC.

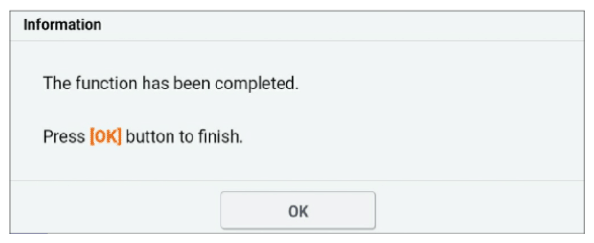

G13301856Courtesy of KIA MOTORS AMERICA, INC.
