Repair Procedures: Replacement

NOTE: When installing the belt, be careful not to damage the pretensioner.

Remove the center pillar upper trim.
(Refer to Interior Trim - "CENTER PILLAR TRIM ")

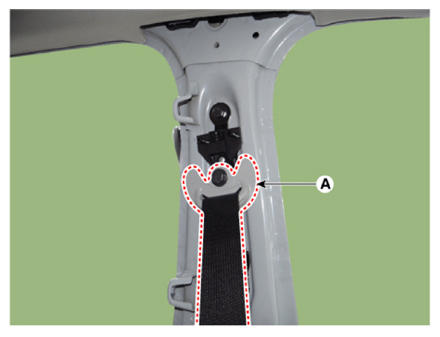

After loosening the front belt upper anchor mounting bolt, remove the front belt upper anchor (A).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 Kgf.m, 28.8 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

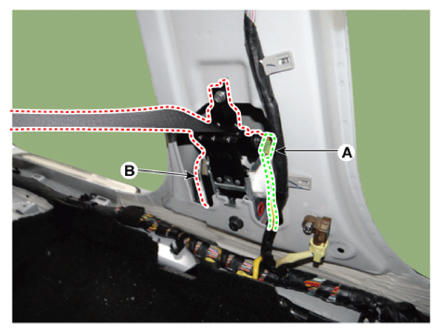

After disconnecting the lock pin, remove the front seat belt pretensioner connector (A), loosen the mounting bolt, and then remove the front seat belt pretensioner (B).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 Kgf.m, 28.8 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.

Information

When installing the connector, be sure to insert it to the anchor pretensioner until "click" sound is heard and then check it for secure installation by pulling it.
When ignition switch is turned "ON", check that the indicator lamp turns on for 6 seconds and then off, indicating normal operation of the system.
Make sure that the connectors are plugged in properly.
Replace any damaged clips.
