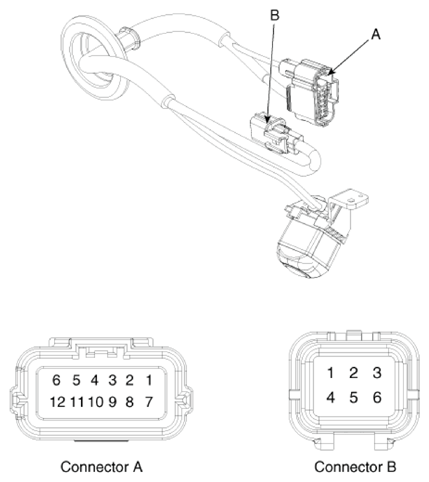

Connector And Terminal Function
| Pin | Function | |
|---|---|---|
| Connector A | Connector B | |
| 1 | Camera power | License plate lamp (LH) |
| 2 | NTSC video | - |
| 3 | Video ground | Handle switch (+) |
| 4 | Camera ground | License plate lamp (RH) |
| 5 | C-CAN (High) | License plate lamp ground |
| 6 | C-CAN (Low) | Handle switch (-) |
| 7 | Handle switch (+) | |
| 8 | License plate lamp ground | |
| 9 | Handle switch (-) | |
| 10 | - | |
| 11 | License plate lamp (LH) | |
| 12 | License plate lamp (RH) | |
