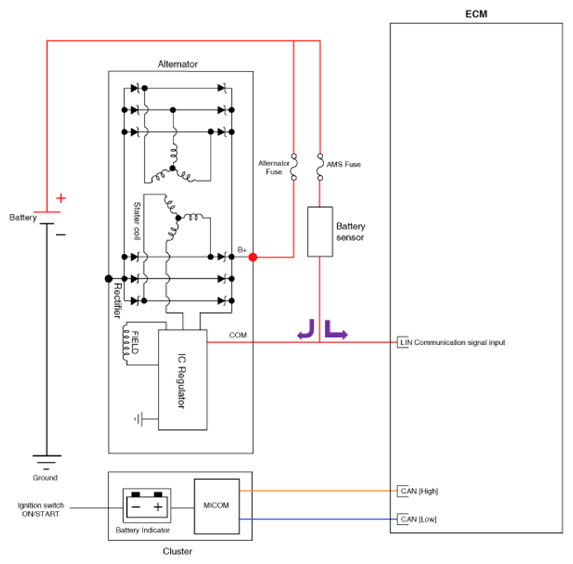

Circuit Diagram
Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Information
COM signal-
LIN communication control
B+ Terminal-
The output voltage from the generator travels to the battery via the B+ terminal.
Courtesy of KIA MOTORS AMERICA, INC.
