Interior Antenna 1

  1. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

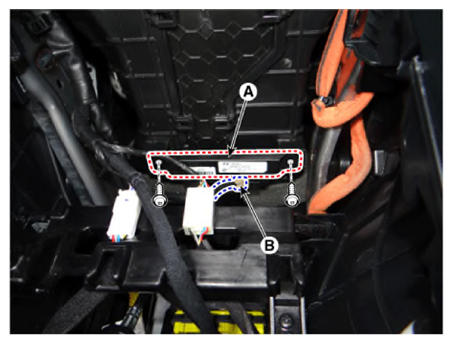

  2. Remove the interior antenna 1 (A) by loosening the screws after disconnecting the connector (B).
G13312529Courtesy of KIA MOTORS AMERICA, INC.
