Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the coupling assembly.
(Refer to Coupling Assembly - "DIRECT ELECTRO HYDRAULIC ACTUATOR COUPLING ")

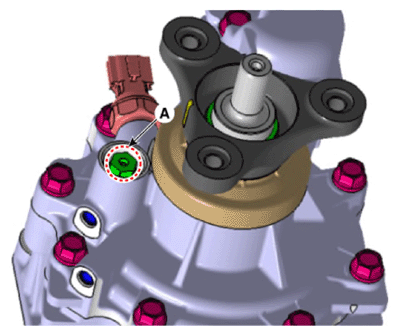

Remove the relief valve (A) from the coupling assembly.

Tightening torque:

26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb-ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

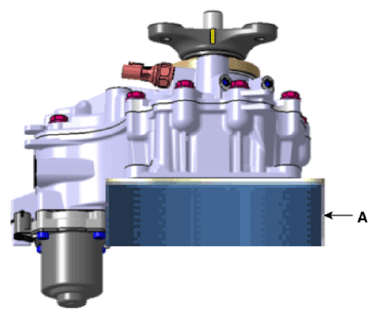

Use a tool (A) that allows the auxiliary operator to hold or seat the coupling in a vertical position.

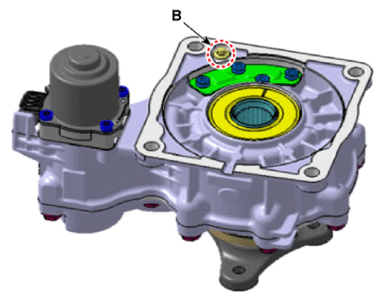

So that the input shaft side (B) is not damaged.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
