LED Driver Module (LDM)

  1. Remove the headlamp assembly.

    (Refer to Headlamp - "REMOVAL ")

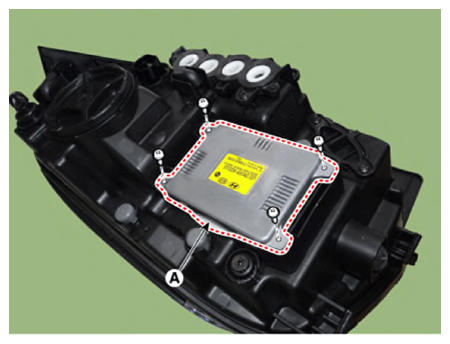

  2. Remove the LDM (A) by loosening the screws.
    G13312228Courtesy of KIA MOTORS AMERICA, INC.

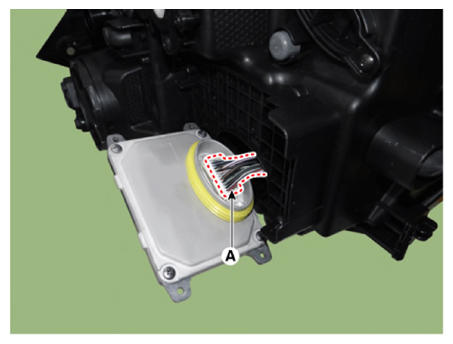

  3. Disconnect the LDM connector (A).
    G13312229Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
