Component Inspection
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

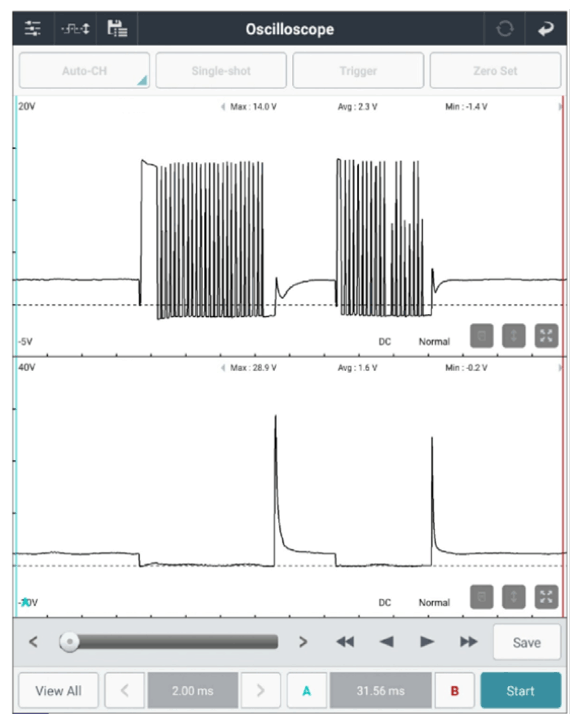

High pressure fuel pump connector | 2 (high) | Chassis ground | - | Fig.1 |
| High pressure fuel pump connector | 1 (low) | Chassis ground | - | ||
Good
- Go to "VERIFICATION OF REPAIR " procedure.
No Good
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the high pressure fuel pump and go to "VERIFICATION OF REPAIR " procedure.
