Front Brake Pads: Standard

WARNING: This page is about a different car, the 2019 Kia Stinger. However, it is still accessible from the selected car via links, so may be relevant.

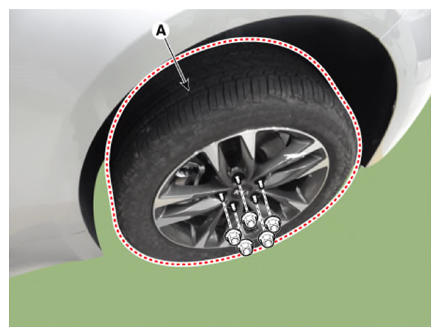

Remove wheel nuts, front wheel and tire (A) from front hub.
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage the hub bolts when removing the front wheel and tire.

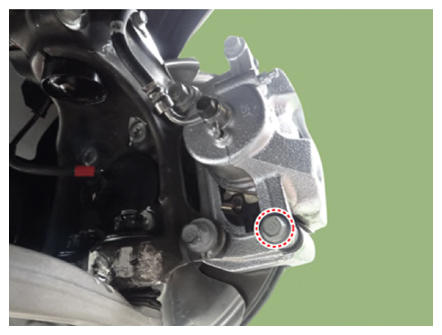

Loosen the guide rod bolt and then pivot the caliper body up out of the way.
Tightening torque:

21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

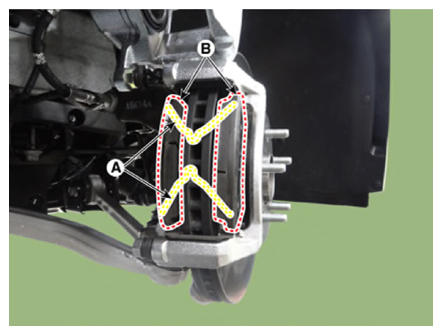

Remove the return spring (A), brake pad (B).

Courtesy of KIA MOTORS AMERICA, INC.

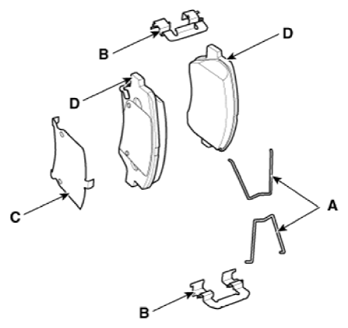

NOTE: Place the return spring (A), pad retainer (B), inner brake shim (C), and brake pad (D) all at the same time when replacing the brake pad.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

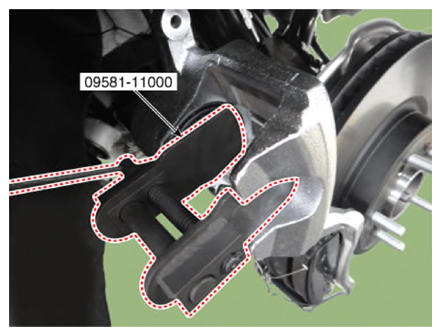

Use the SST (09581-11000) when installing the brake caliper assembly.

Courtesy of KIA MOTORS AMERICA, INC.
After installation, bleed the brake system.
(Refer to Brake system - " BRAKE BLEEDING PROCEDURES ")
