Components And Components Location: Components

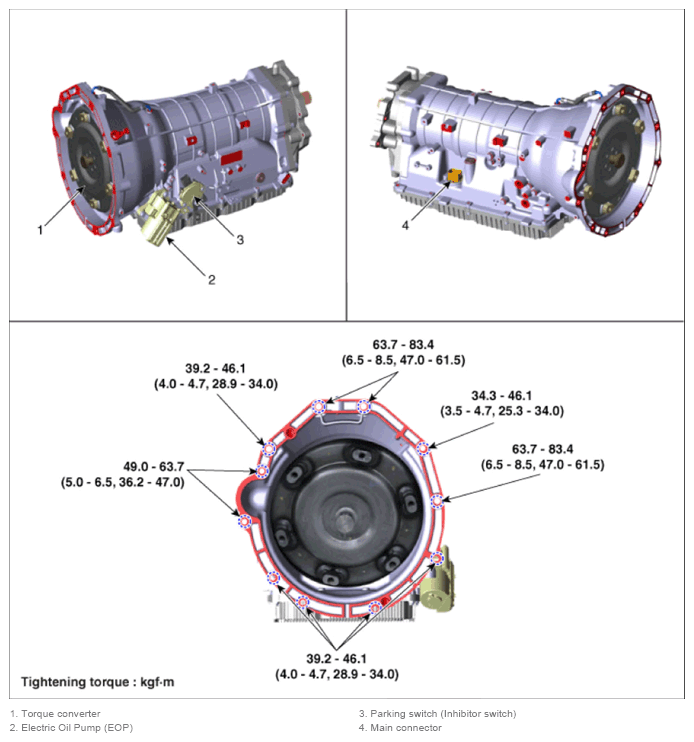

Fig 1: Automatic Transmission System Components With Torque Specification

G12803809

Courtesy of KIA MOTORS AMERICA, INC.
