Repair Procedures: Removal

WARNING: This page is about a different car, the 2019 Kia Stinger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal, and wait for at least three minutes before beginning to work.
  2. Remove the crash pad lower panel.

    (Refer to Body (Interior and Exterior) - " CRASH PAD LOWER PANEL  ")

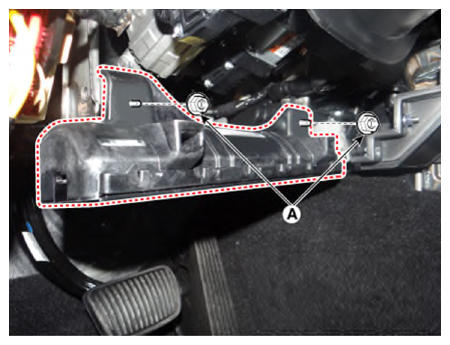

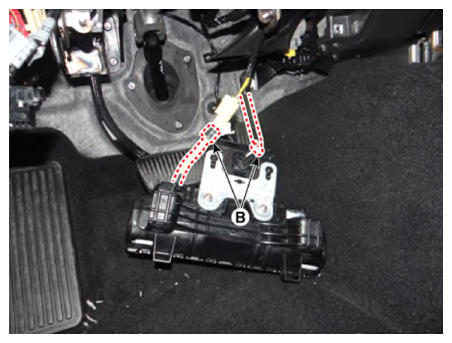

  3. Loosen the nuts (A) and then disconnect the connector (B).

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

    G12795638Courtesy of KIA MOTORS AMERICA, INC.
    G12795639Courtesy of KIA MOTORS AMERICA, INC.
