Repair Procedures: Removal

WARNING: This page is about a different car, the 2019 Kia Stinger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative terminal, and wait for at least three minutes before beginning to work.
  2. Remove the roof trim.

    (Refer to Body (Interior and Exterior) - " ROOF TRIM ASSEMBLY  ")

  3. Disconnect the connector (A) from the curtain airbag module.

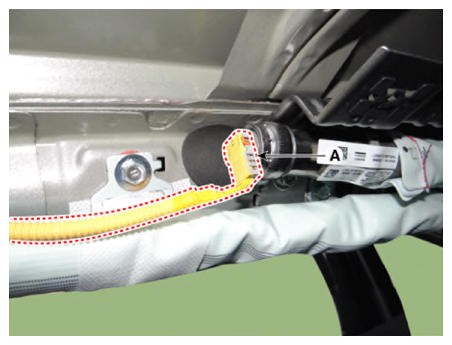

    G12795634Courtesy of KIA MOTORS AMERICA, INC.
  4. Loosen the curtain airbag bolts and nuts and then remove the curtain airbag.

    Tightening torque

    Bolt: 7.7 - 11.7 N.m (0.79 - 1.2 kgf.m, 5.7 - 8.6 lb.ft)

    Nut: 3.8 - 5.8 N.m (0.39 - 0.6 kgf.m, 2.8 - 4.3 lb.ft)

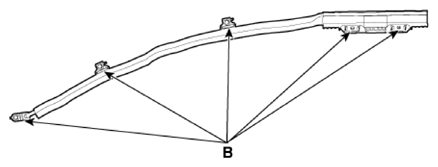

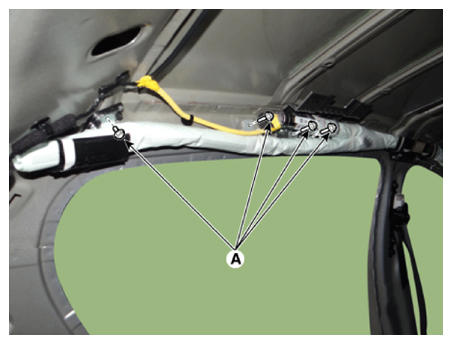

    G12795635Courtesy of KIA MOTORS AMERICA, INC.
    G12795636Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: Never twist the airbag module when installing it. If the module is twisted, airbag module may operate abnormally.
