Repair Procedures: Removal

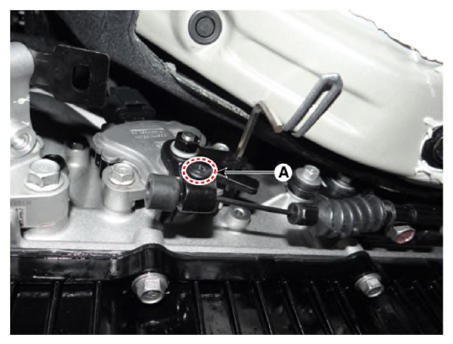

  1. Remove the parking release cable after loosening the fastener (A).
    G12795279Courtesy of KIA MOTORS AMERICA, INC.

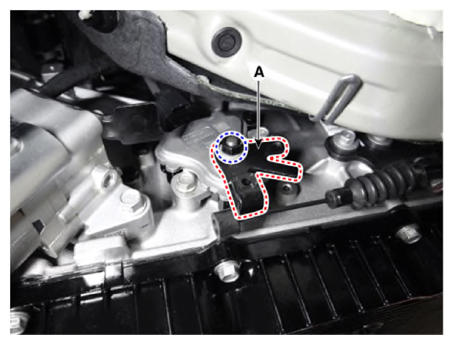

  2. Remove the parking release lever (A) after loosening the nut.
    G12795280Courtesy of KIA MOTORS AMERICA, INC.

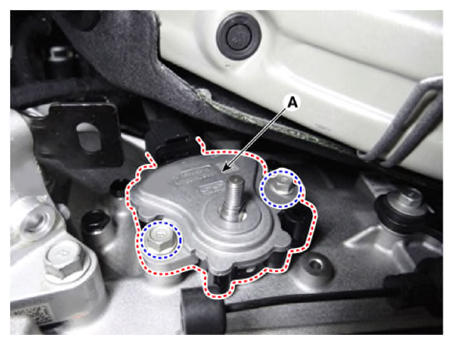

  3. Remove the parking switch (A) after loosening the bolts.
    G12795281Courtesy of KIA MOTORS AMERICA, INC.

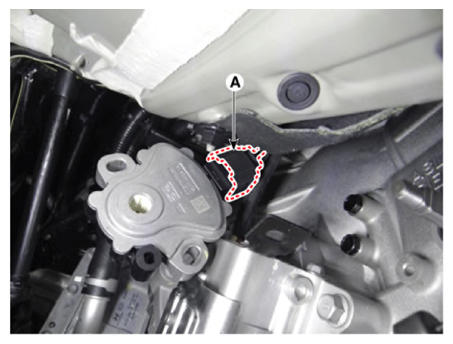

  4. Disconnect the parking switch connector (A).
G12795282Courtesy of KIA MOTORS AMERICA, INC.
