Repair Procedures: Removal

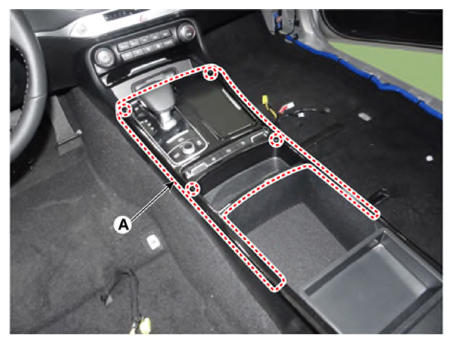

1. Remove the upper console cover (A) using the remover.

   Courtesy of KIA MOTORS AMERICA, INC.

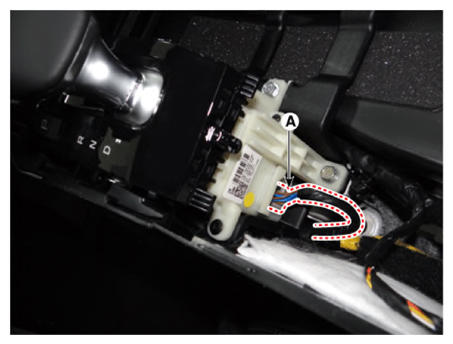

2. Disconnect the main connector (A).

   Courtesy of KIA MOTORS AMERICA, INC.

3. Loosen the E-shifter mounting screws (A).

   Courtesy of KIA MOTORS AMERICA, INC.

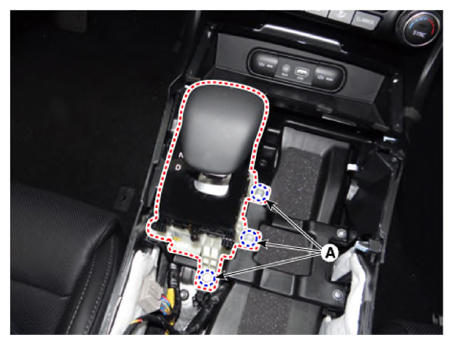

4. Loosen the E-shifter mounting bolts (A).

Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
