Repair Procedures: Removal

WARNING: This page is about a different car, the 2019 Kia Stinger. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the brake fluid from the master cylinder reservoir with a syringe.
NOTE: Do not spill brake fluid on the vehicle as it may damage the paint. If brake fluid comes in contact with the paint, wash off immediately with water.

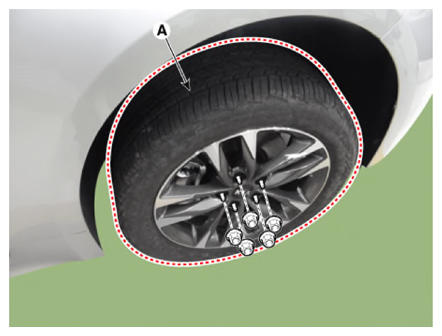

Remove wheel nuts, front/rear wheel and tire (A) from front/rear hub.
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage the hub bolts when removing the front/rear wheel and tire.

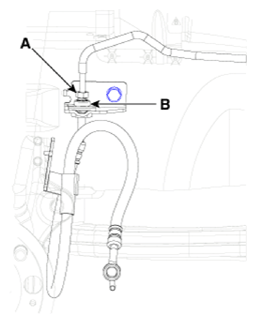

[Front]
Loosen the flare nut (A) and then disconnect the tube.
Disconnect the brake hose clip (B).
Tightening torque:

13.7 - 16.7 N.m (1.4 - 1.7 kgf.m, 10.1 - 12.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

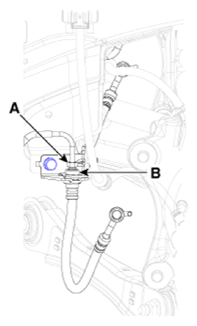

[Rear]
Loosen the flare nut (A) and then disconnect the tube.
Disconnect the brake hose clip (B).
Tightening torque:

13.7 - 16.7 N.m (1.4 - 1.7 kgf.m, 10.1 - 12.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

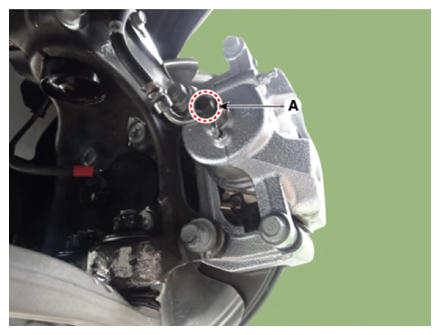

Loosen the front/rear brake caliper hose bolt (A).
Tightening torque:

24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
