Repair Procedures: Removal
WARNING: This page is about a different car, the 2019 Kia Stinger. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable and wait for at least thirty seconds before beginning to work.

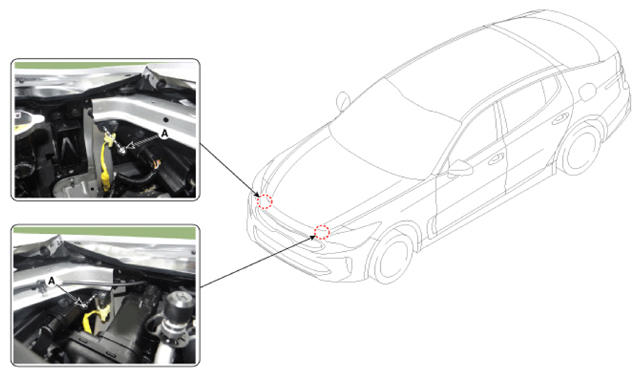

- Disconnect the front impact sensor connector (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

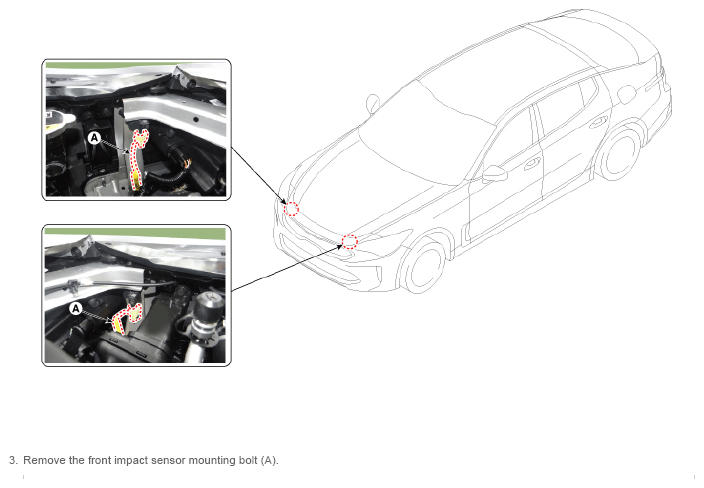

- Remove the front impact sensor mounting bolt (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
