Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Stinger. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Wear gloves to protect hands from injury.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Wear gloves to protect hands from injury.

Courtesy of KIA MOTORS AMERICA, INC.

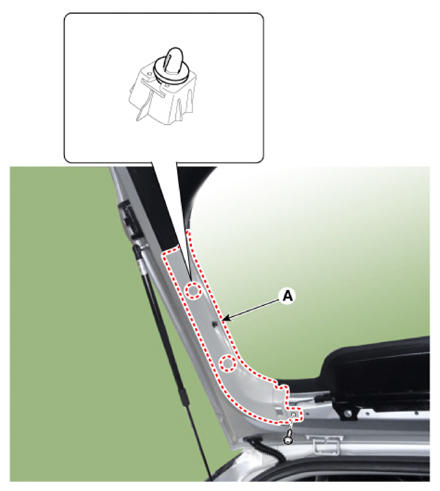

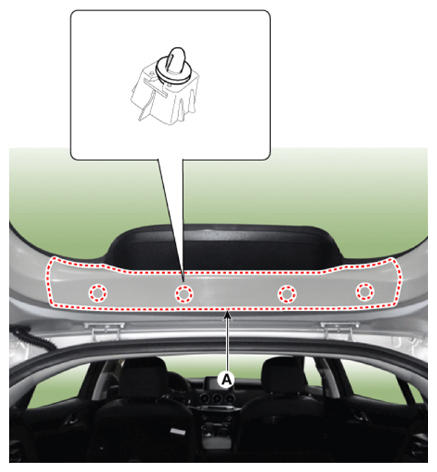

Remove the tailgate side trim (A) after loosening the mounting screw.

Courtesy of KIA MOTORS AMERICA, INC.

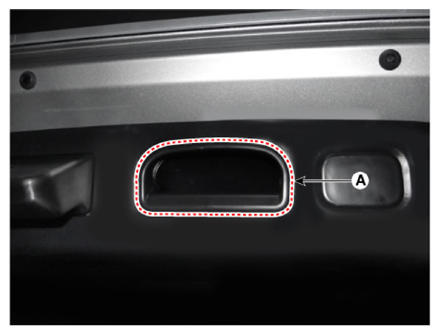

Remove the tailgate inside full handle cap (A) by using a remover.

Courtesy of KIA MOTORS AMERICA, INC.

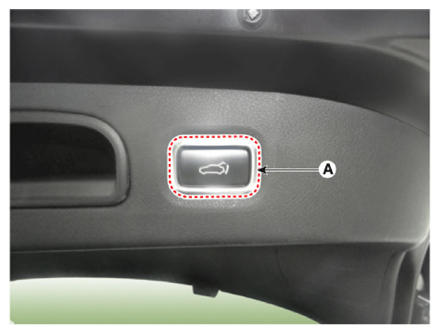

Separate the smart tailgate inner switch (A).

Courtesy of KIA MOTORS AMERICA, INC.

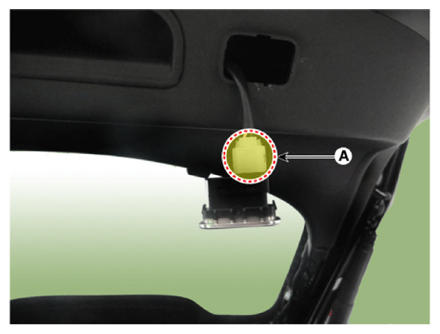

Remove the smart tailgate inner switch after disconnecting the connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

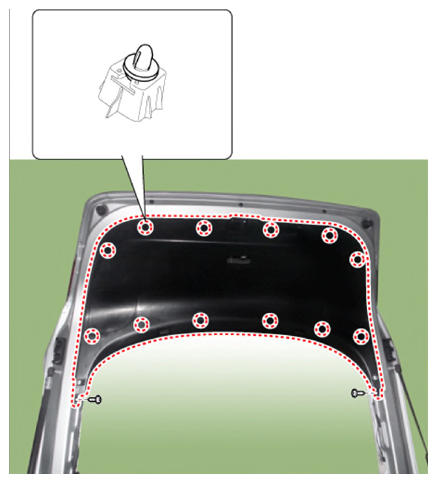

Remove the tailgate trim (A) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Replace any damaged clips.
