Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Stinger. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Wear gloves to protect hands from injury.

Information

When removing and installing the tail gate, an assistant is needed.

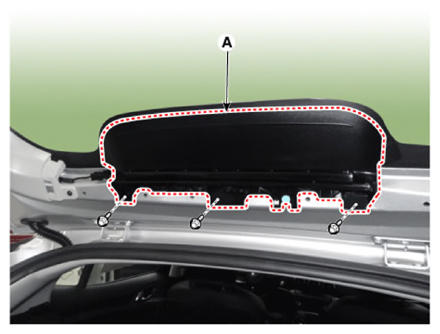

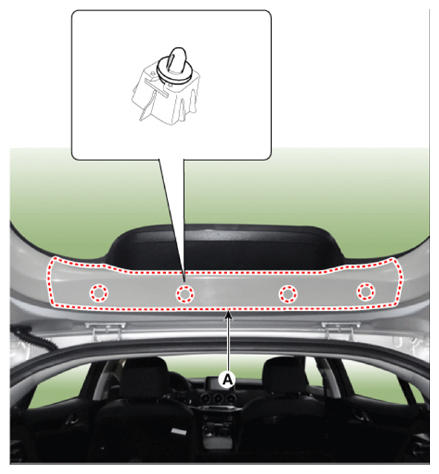

Remove the tailgate upper trim (A).

Courtesy of KIA MOTORS AMERICA, INC.

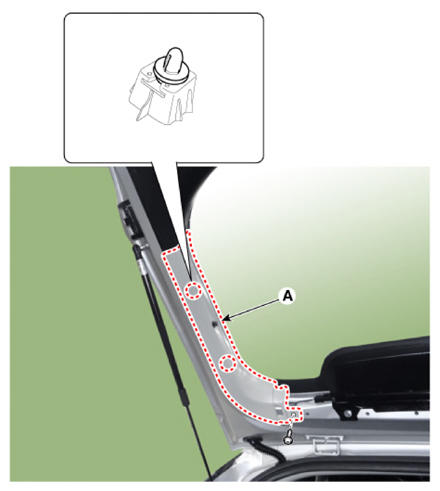

Remove the tailgate side trim (A) after loosening the mounting screw.

Courtesy of KIA MOTORS AMERICA, INC.

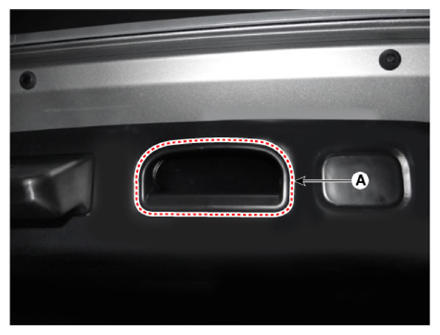

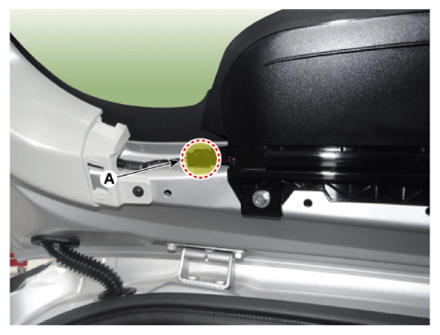

Remove the tailgate inside full handle cap (A) by using a remover.

Courtesy of KIA MOTORS AMERICA, INC.

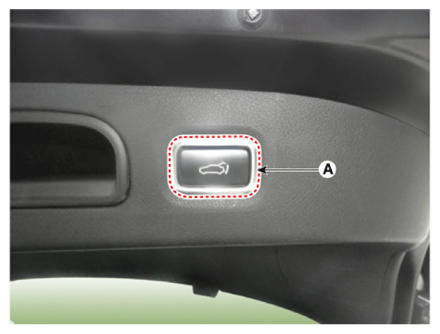

Separate the smart tailgate inner switch (A).

Courtesy of KIA MOTORS AMERICA, INC.

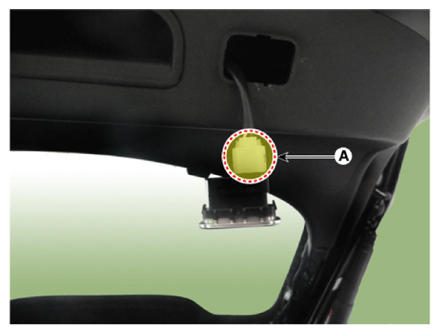

Remove the smart tailgate inner switch after disconnecting the connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

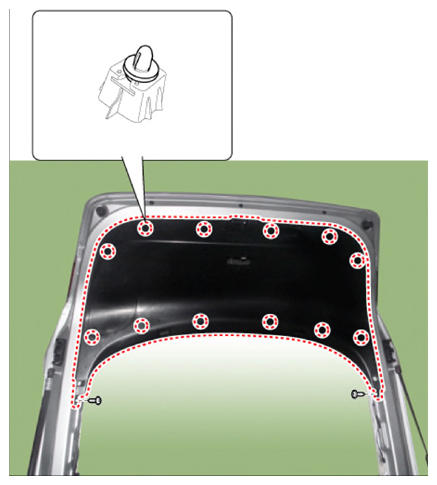

Remove the tailgate trim (A) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the high mounted stop lamp connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the high mounted stop lamp (A) after loosening the mounting bolts.

Courtesy of KIA MOTORS AMERICA, INC.

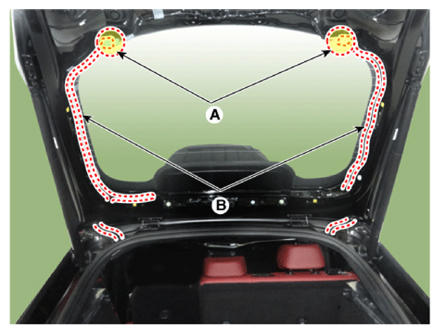

Separate the extension wiring harness (B) after disconnecting the connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

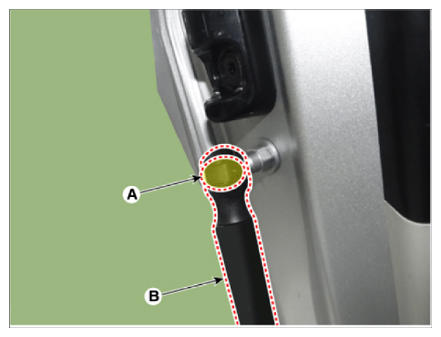

Using a screwdriver, separate the both ends of the tailgate lifter (B) after removing the socket clips (A).

Courtesy of KIA MOTORS AMERICA, INC.

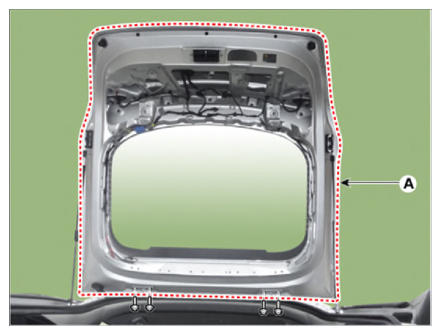

Remove the tailgate assembly (A) after loosening the mounting bolts.
Tightening torque:

21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the tail gate locks/unlocks and opens/closes properly.
- Adjust the tail gate alignment.
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
