Repair Procedures: Replacement

WARNING: This page is about a different car, the 2019 Kia Stinger. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

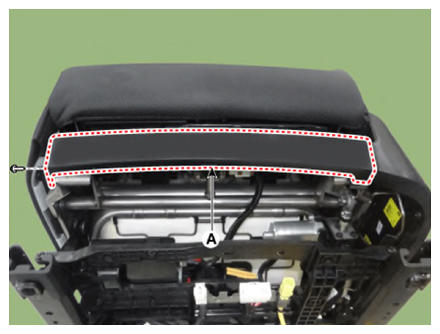

Remove the front seat forward extension cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

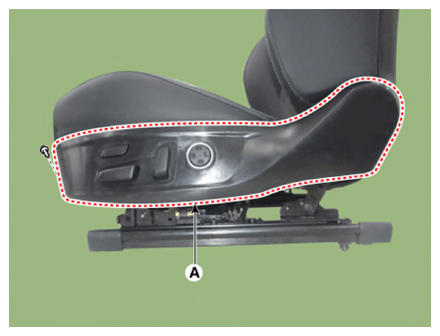

Remove the front seat outer shield cover (A) by using a remover.
NOTE: Be careful not to damage the mounting bracket and hook when removing the cover.

Courtesy of KIA MOTORS AMERICA, INC.

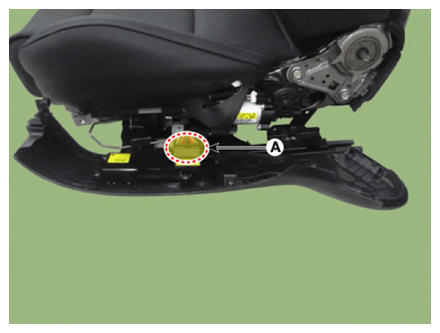

Disconnect the front seat power switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information

Make sure that the connectors are plugged in properly.
