Monitor KDS Data

WARNING: This page is about a different car, the 2019 Kia Stinger. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference

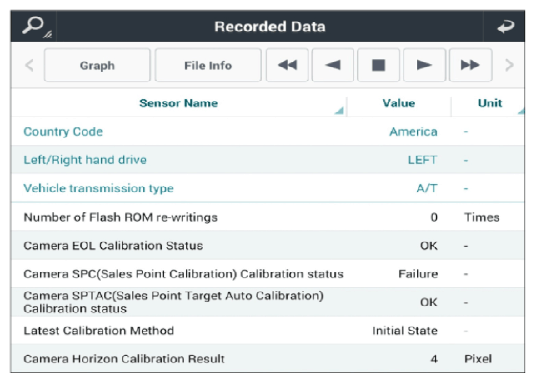

Ignition "ON" and Engine "ON".	Connect KDS to Data Link Connector (DLC). Monitor parameters in "Current Data" with KDS.	Figure below

G12788434

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.

No Good

Go to "WIRING INSPECTION " procedure.
