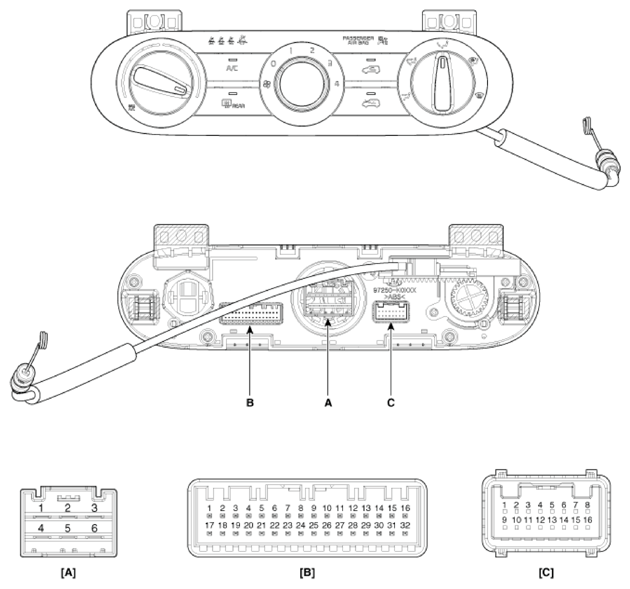

Components And Components Location: Components
WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Connector |
Pin NO |
Function |
Connector |
Pin NO |
Function |
| A |
1 |
Low |
A |
21 |
Middle Low |
| 2 |
Common |
22 |
Middle High |
| 3 |
Ground |
23 |
High |
| Connector |
Pin NO |
Function |
Connector |
Pin NO |
Function |
| B |
1 |
Battery (+) |
B |
17 |
Rear defog switch |
| 2 |
ISG B+ |
18 |
Max blower on signal |
| 3 |
ILL+ (TAIL) |
19 |
Blower on signal to common |
| 4 |
Sensor ground REF (+5V) |
20 |
ILL- (RHEO) |
| 5 |
Mode control actuator (Feedback) |
21 |
IGN2 |
| 6 |
- |
22 |
IGN1 |
| 7 |
Intake actuator (Feedback) |
23 |
P_CAN High |
| 8 |
EVAP sensor (+) |
24 |
P_CAN Low |
| 9 |
AMB sensor (+) |
25 |
- |
| 10 |
Mode control actuator (Vent) |
26 |
- |
| 11 |
Mode control actuator (Def) |
27 |
- |
| 12 |
Heated seat IND [Front] |
28 |
- |
| 13 |
Heated seat SW [Front] |
29 |
ECV(+) |
| 14 |
Intake actuator (Fresh) |
30 |
ECV (-) |
| 15 |
Intake actuator (Recirculation) |
31 |
Sensor ground |
| 16 |
HTD (Rear defog indicator) |
32 |
Ground |
| Connector |
Pin NO |
Function |
Connector |
Pin NO |
Function |
| C |
1 |
SBR Passenger |
C |
9 |
- |
| 2 |
SBR 2 Row Left |
10 |
PTC Relay 1 |
| 3 |
SBR 2 Row Middle |
11 |
PTC Relay 2 |
| 4 |
SBR 2 Row Left |
12 |
- |
| 5 |
PAB IGN1 |
13 |
- |
| 6 |
PAB Cut off Signal |
14 |
- |
| 7 |
PAB on Signal |
15 |
- |
| 8 |
- |
16 |
Ground |
