Engine Room PCB Block

  1. Disconnect the negative battery terminal.

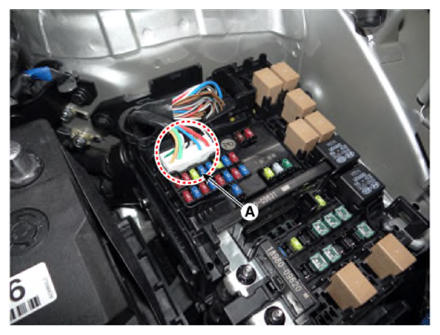

  2. Disconnect the connector (A).
    G13282448Courtesy of KIA MOTORS AMERICA, INC.

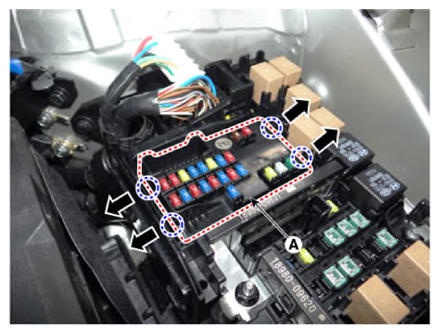

  3. Push the hooks in the direction of the arrow and lift up the engine room PCB block (A).
    G13282449Courtesy of KIA MOTORS AMERICA, INC.

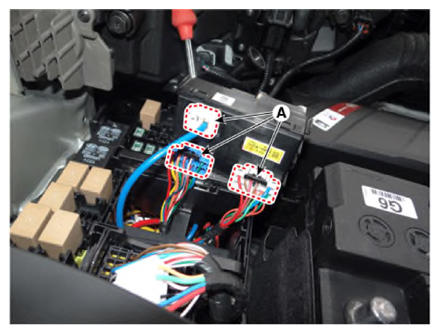

  4. Disconnect the connectors (A) from the engine room PCB block.
G13282450Courtesy of KIA MOTORS AMERICA, INC.
