Components And Components Location: Components

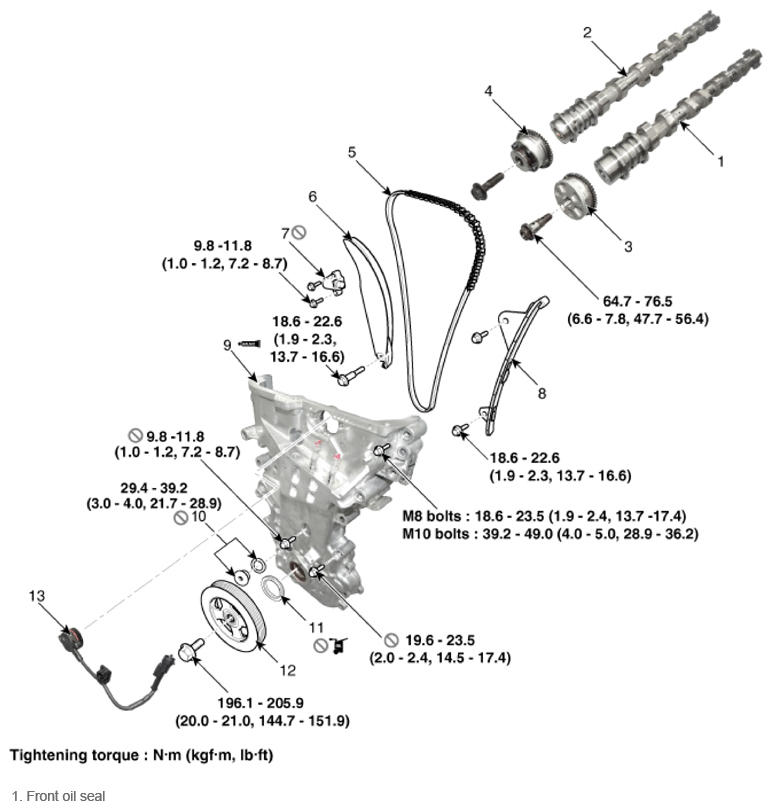

Fig 1: Timing Chain Components Location With Torque Specification

G13283566

Courtesy of KIA MOTORS AMERICA, INC.
