Components And Components Location: Components

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.

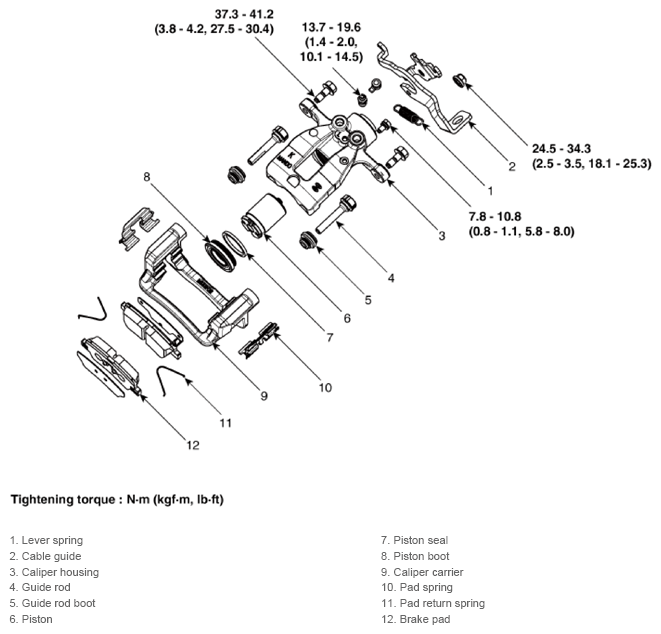

Fig 1: Rear Disc Brake Components Location With Torque Specification
G13281739Courtesy of KIA MOTORS AMERICA, INC.
