Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Soul. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the crash pad center panel.

    (Refer to Body - "CRASH PAD CENTER PANEL ")

  3. Disconnect the connectors (A), then remove the IBU (B) after loosening the bolt and nuts.

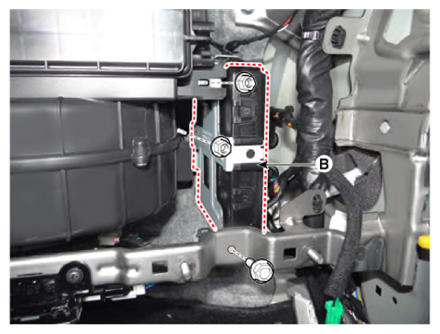

G13282535Courtesy of KIA MOTORS AMERICA, INC.

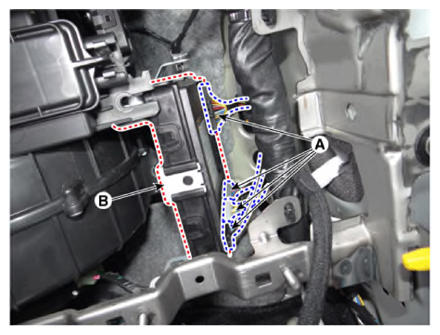

G13282536Courtesy of KIA MOTORS AMERICA, INC.
