Section 19 (Cylinder Block - 2.4L)
>>
Components & Components Location
>>
Components
Components & Components Location: Components
WARNING:
This page is about a different variant/trim than selected.

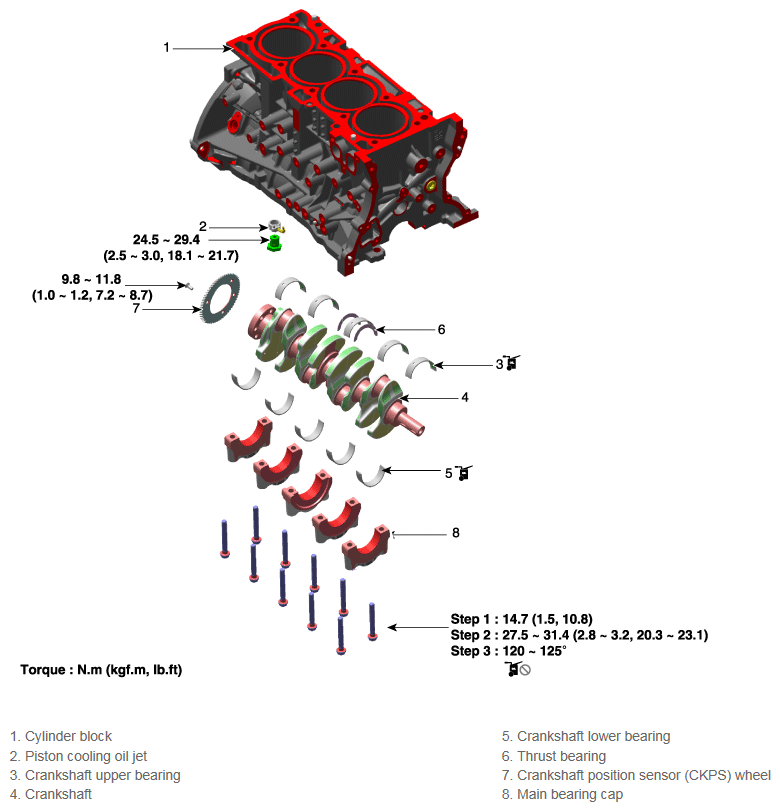

Fig 1: Cylinder Block Components With Torque Specification (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

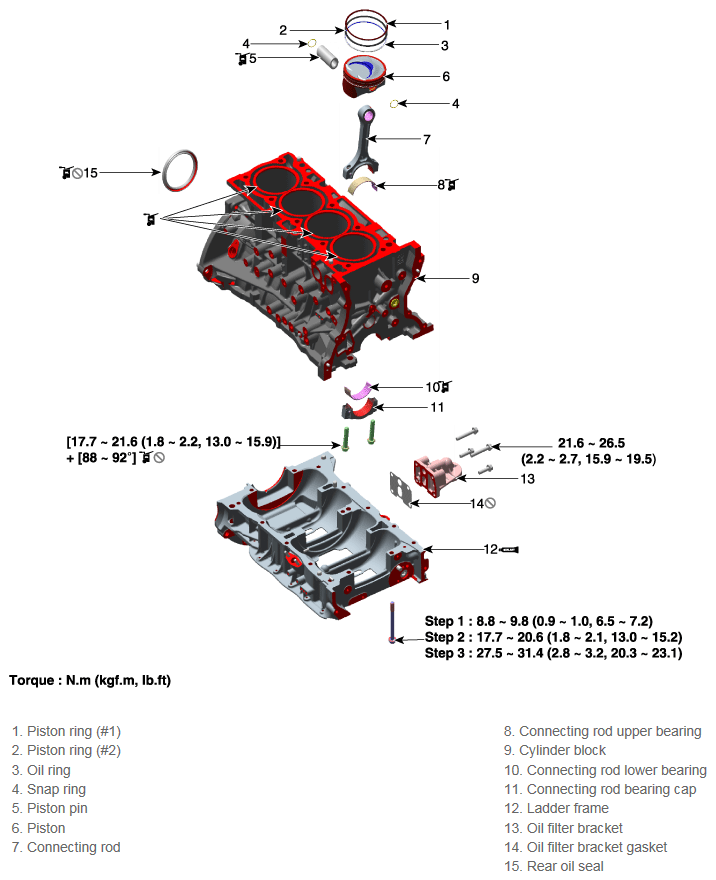

Fig 2: Cylinder Block Components With Torque Specification (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
