Repair Procedures: Removal

WARNING: This page is about a different car, the 2019 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.

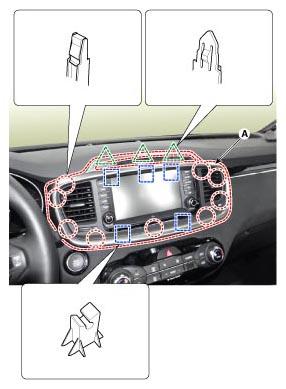

Remove the center fascia panel (A).

Fig 1: Locating Center Fascia Panel
Courtesy of KIA MOTORS AMERICA, INC.
Remove the audio head unit (A) after loosening the screws.

Fig 2: Removing Audio Head Unit Screws
Courtesy of KIA MOTORS AMERICA, INC.
Remove the audio head unit after disconnecting the connectors and cable (A).

Fig 3: Removing Audio Head Unit Connectors And Cable
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When the compact disc is not ejected, do not remove it by force.
