Home >> Kia >> 2020 >> Sorento EX, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System - 3.3L >> Components & Components Location >> Components

Components & Components Location: Components

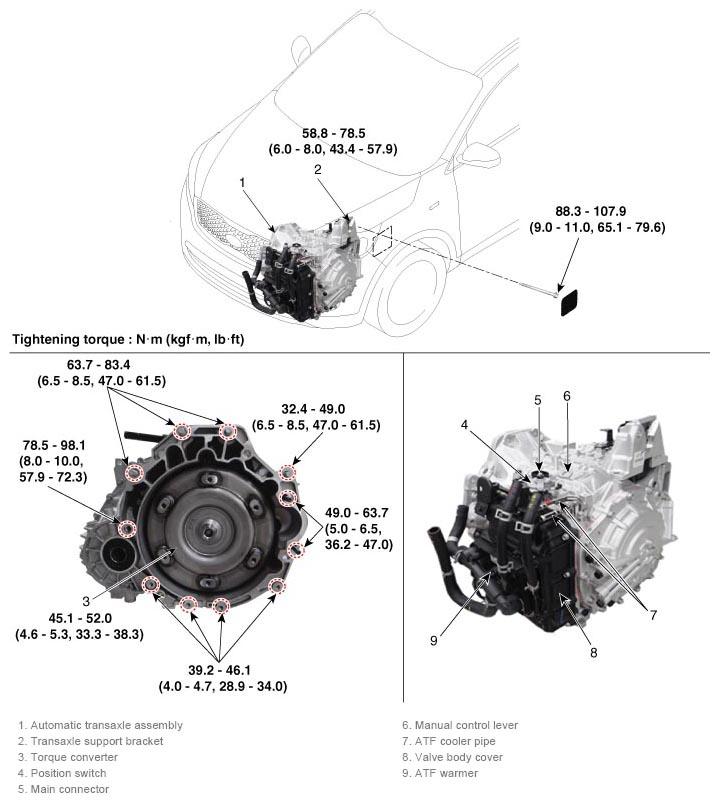

Fig 1: Automatic Transaxle System Components With Torque Specification

G12885890

Courtesy of KIA MOTORS AMERICA, INC.
