Home >> Kia >> 2020 >> Sorento EX, FWD >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Front Axle Assembly >> Front Hub/Knuckle/Tone Wheel >> Components And Components Location >> Components

Components And Components Location: Components

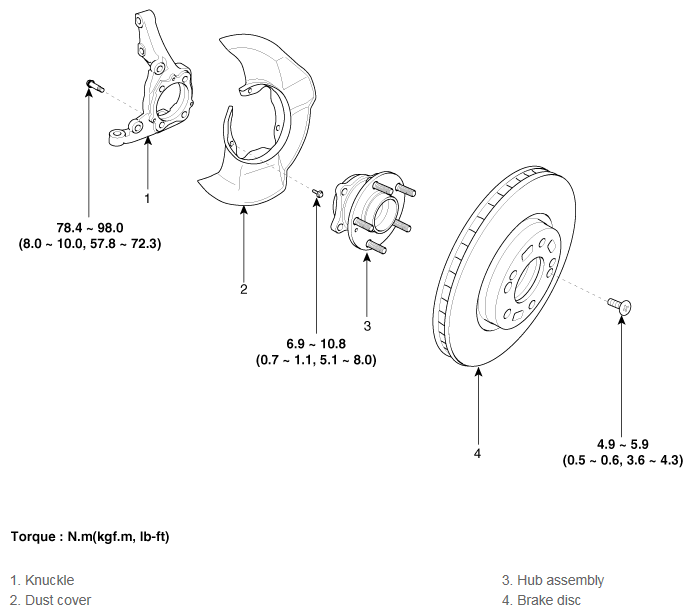

Fig 1: Front Hub/Knuckle/Tone Wheel Components With Torque Specification

G12850534

Courtesy of KIA MOTORS AMERICA, INC.
