FOB Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

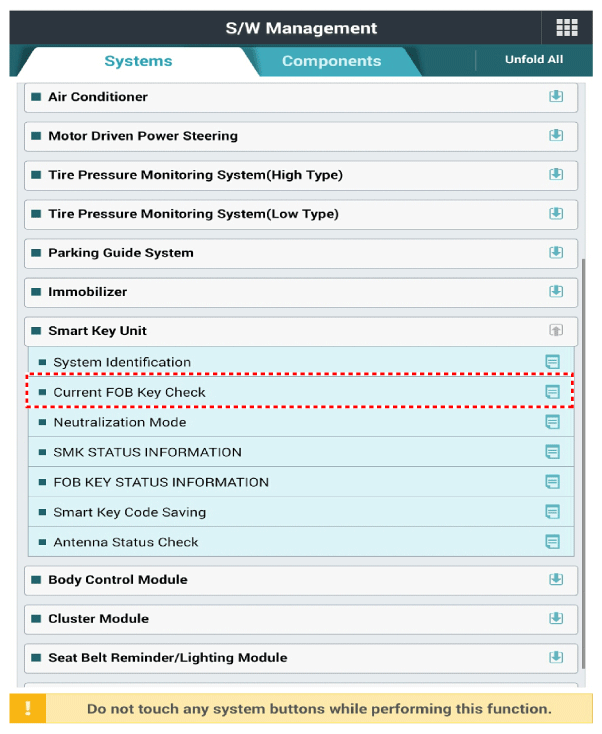

G12884884Courtesy of KIA MOTORS AMERICA, INC.

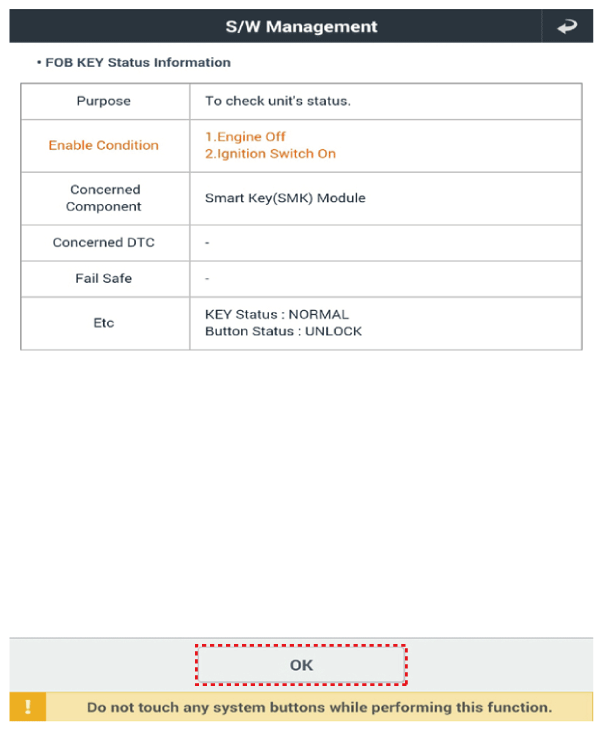

G12884885Courtesy of KIA MOTORS AMERICA, INC.

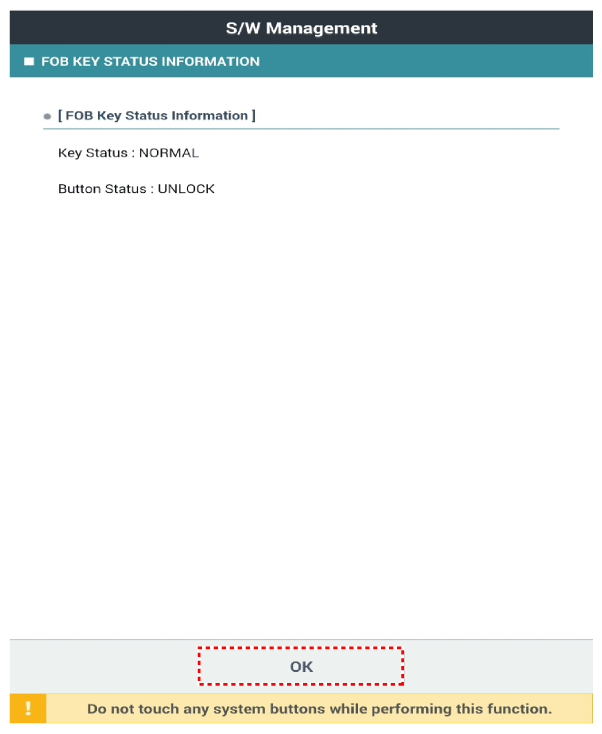

G12884886Courtesy of KIA MOTORS AMERICA, INC.
