Repair Procedures: Replacement

Remove the center pillar upper trim.
(Refer to Interior Trim - "CENTER PILLAR TRIM ")

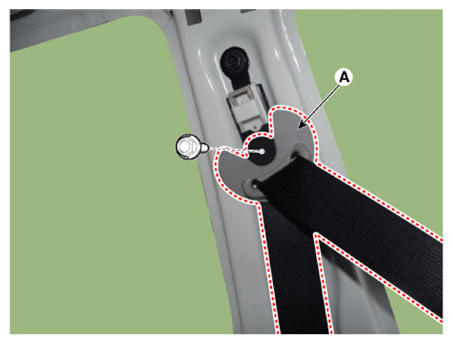

Remove the front seat belt upper anchor (A) after loosening the mounting bolt.
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

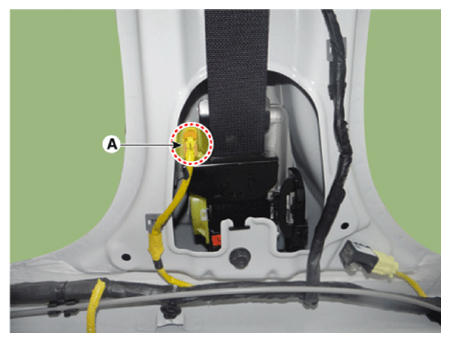

Disconnect the front seat belt retractor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

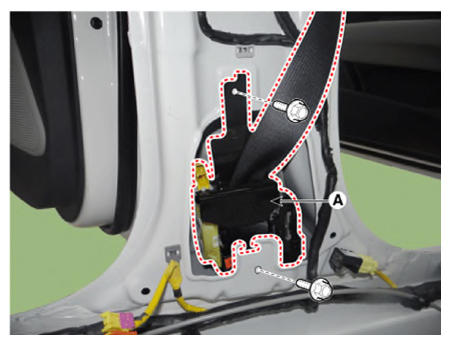

Remove the front seat belt retractor (A) after loosening the mounting bolts.
Tightening torque

Upper: 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

Lower: 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the connector is plugged in properly.
- Replace any damaged clips.
