Removal and Installation

1. Remove the ignition coil.

   (Refer to Ignition System - "IGNITION COIL ")

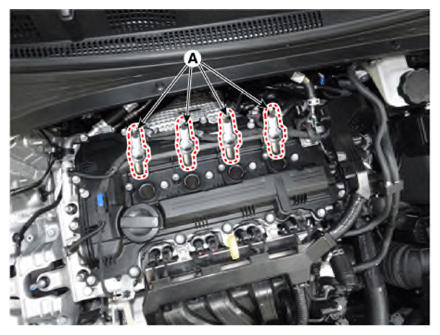

2. Using a spark plug wrench, remove the spark plug (A).

   Courtesy of KIA MOTORS AMERICA, INC.

3. Install in the reverse order of removal.

Tightening torque:

14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.8 - 18.0 lb-ft)
