Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

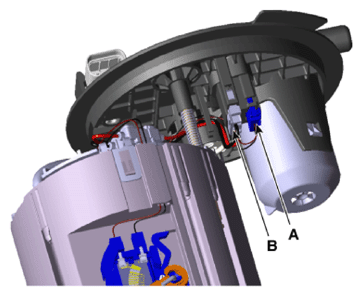

  2. Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).
    G13412434Courtesy of KIA MOTORS AMERICA, INC.

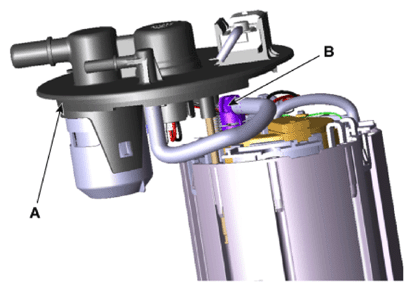

  3. Remove the head assembly (A) after releasing the cushion fixing hooks.
  4. Disconnect the fuel tube quick-connectors (B).
    G13412435Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the fuel sender (A) in the direction of an arrow.
    G13412436Courtesy of KIA MOTORS AMERICA, INC.

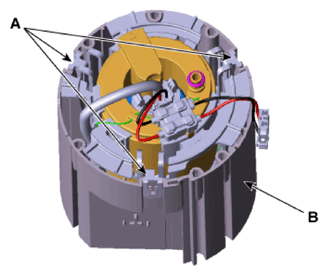

  6. Remove the reservior-cup (B) after releasing the fixing hooks (A).
    G13412437Courtesy of KIA MOTORS AMERICA, INC.

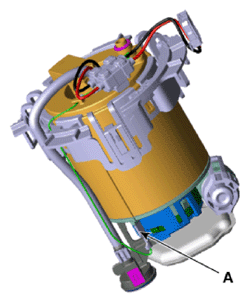

  7. Disconnect the ground (A).
    G13412438Courtesy of KIA MOTORS AMERICA, INC.

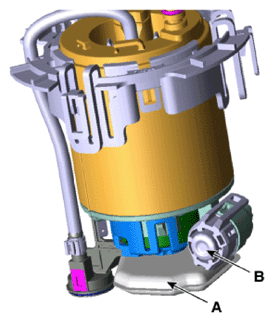

  8. Release the fixing hooks, and then remove the pre-filter (A) and the fuel pressure regulator (B).
    G13412439Courtesy of KIA MOTORS AMERICA, INC.

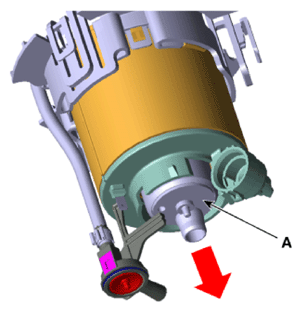

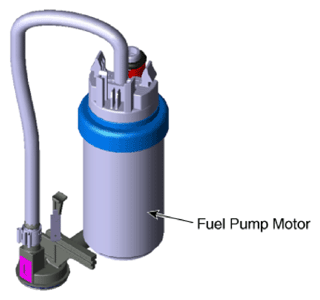

  9. Remove the fuel pump motor (A) in the direction of an arrow.
    G13412440Courtesy of KIA MOTORS AMERICA, INC.
    G13412441Courtesy of KIA MOTORS AMERICA, INC.
