Repair Procedures: Removal

  1. Remove the fuel pump.

    (Refer to Fuel Delivery System - "FUEL PUMP ")

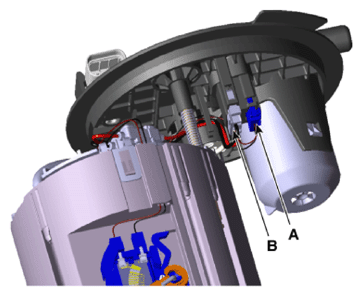

  2. Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).
    G13412445Courtesy of KIA MOTORS AMERICA, INC.

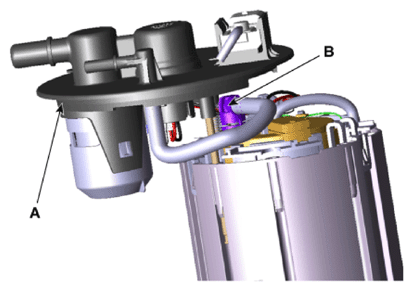

  3. Remove the head assembly (A) after releasing the cushion fixing hooks.
  4. Disconnect the fuel tube quick-connectors (B).
    G13412446Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the fuel sender (A) in the direction of an arrow.
    G13412447Courtesy of KIA MOTORS AMERICA, INC.

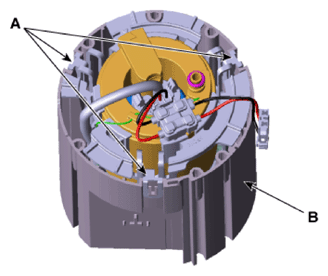

  6. Remove the reservior-cup (B) after releasing the fixing hooks (A).
    G13412448Courtesy of KIA MOTORS AMERICA, INC.

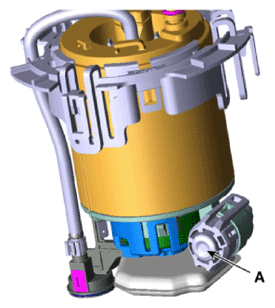

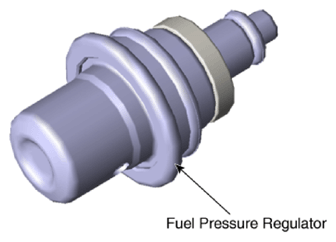

  7. Release the fixing hooks, and then remove the fuel pressure regulator (A).
    G13412449Courtesy of KIA MOTORS AMERICA, INC.
    G13412450Courtesy of KIA MOTORS AMERICA, INC.
